Aerial Lift

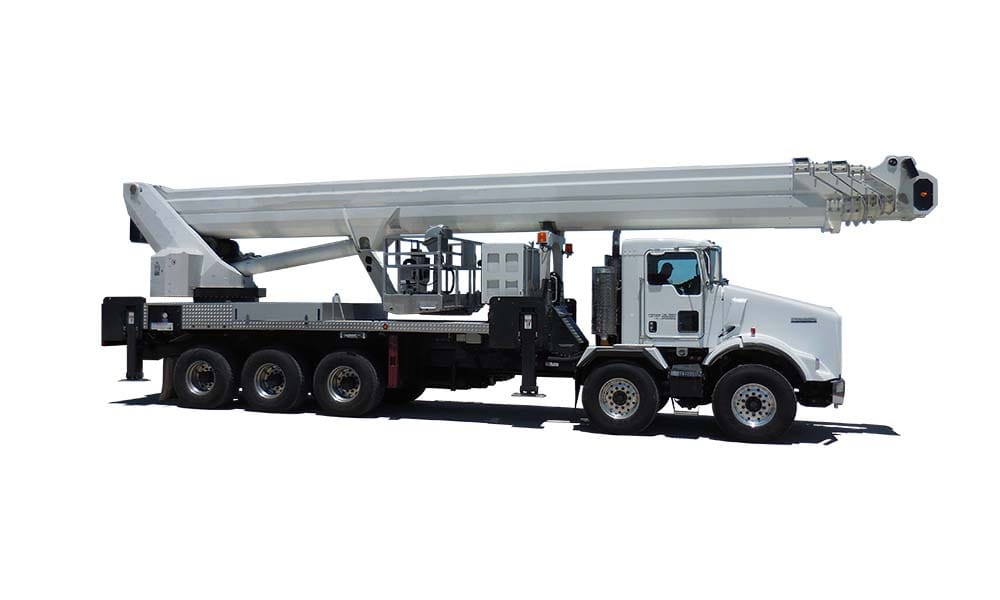

Ruthmann T235A

Ruthmann

235 ft Articulated Telescopic

INDUSTRIES SERVED
Wind Energy
TYPE
Ruthmann
HEIGHT RANGE
100ft & Above
MODEL SERIES
RUTHMANN

Product Overview

Working Height
235 ft (71.63 m)
Height to Bottom of Platform
229 ft (69.8 m)
Horizontal Reach
125 ft (38.1 m)
Stowed Travel Height
13.5 ft (3.96 m)
Platform Capacity
1323 lbs (600.1 kg)
Platform Rotation
180º
Insulated or Non-insulated
Non-insulated
Material Handling
Yes

Specifications

Hydraulic System

Hydraulic Controls
N/A
Operating Pressure
3000 psi (210.92 kg/cm²)

Boom

Upper Boom Articulation
180°
Lower Boom Articulation
80°
Inner Boom Extension
216 in (5.49 m)
Boom Rotation
500º

Material Handling Options

Jib & Winch Capacity
661 lbs (299.82 kg)
Jib Articulation
180º
