Bucket Truck VO-270-REVERSE

VO-270-REV

Overcenter

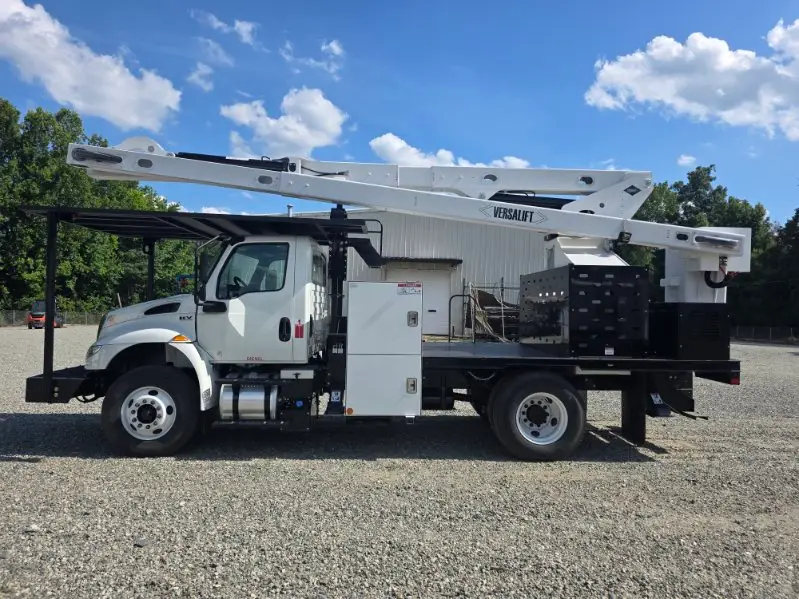

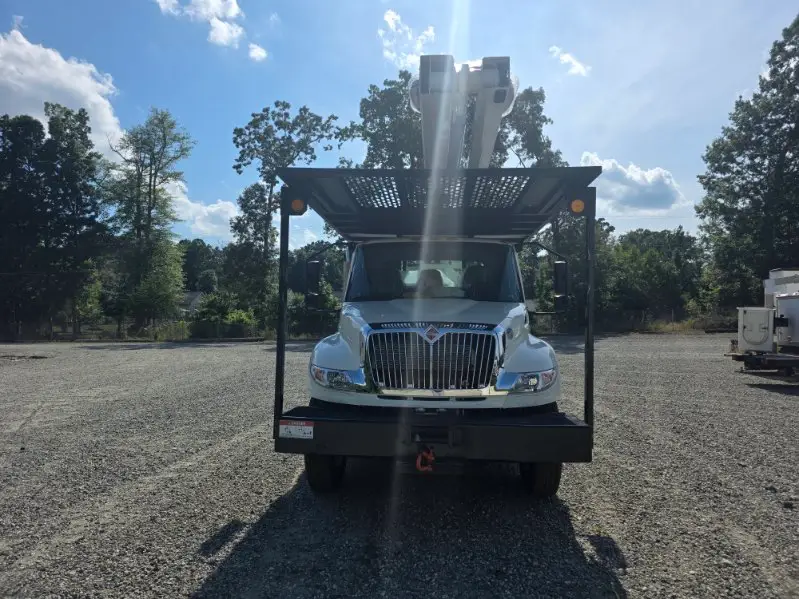

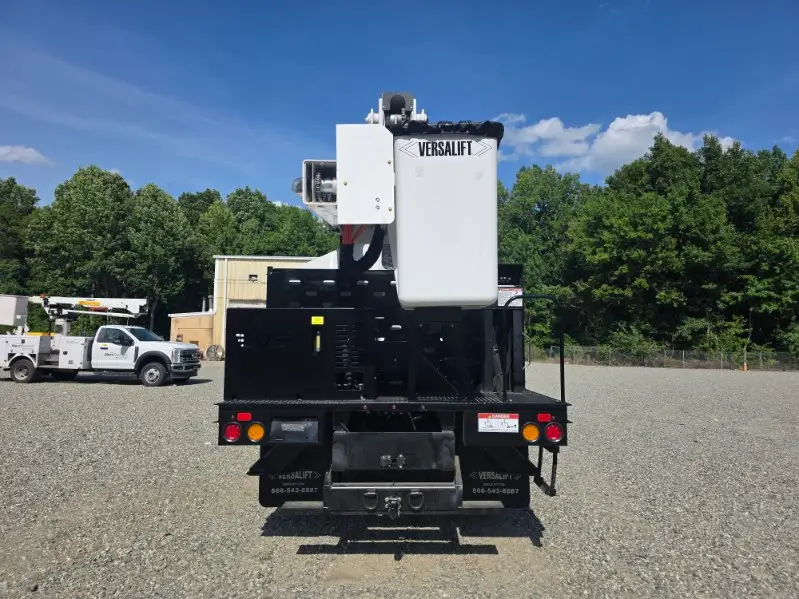

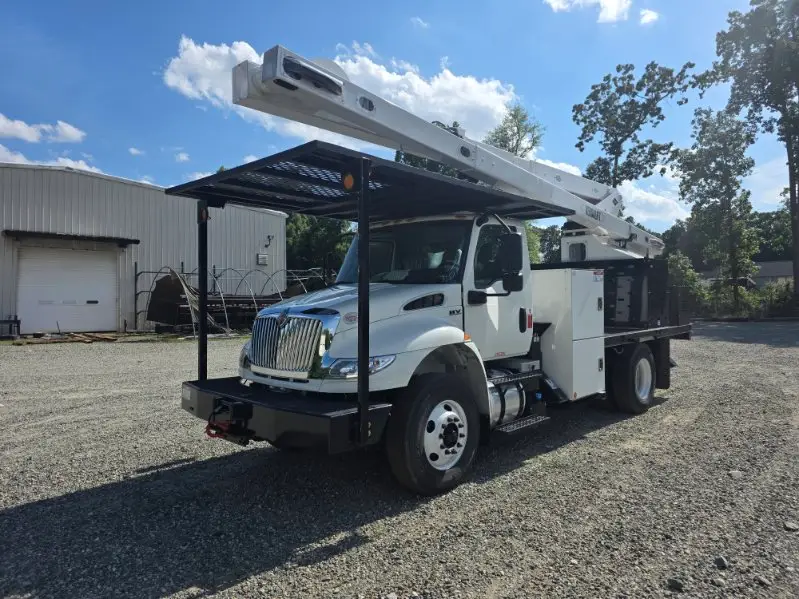

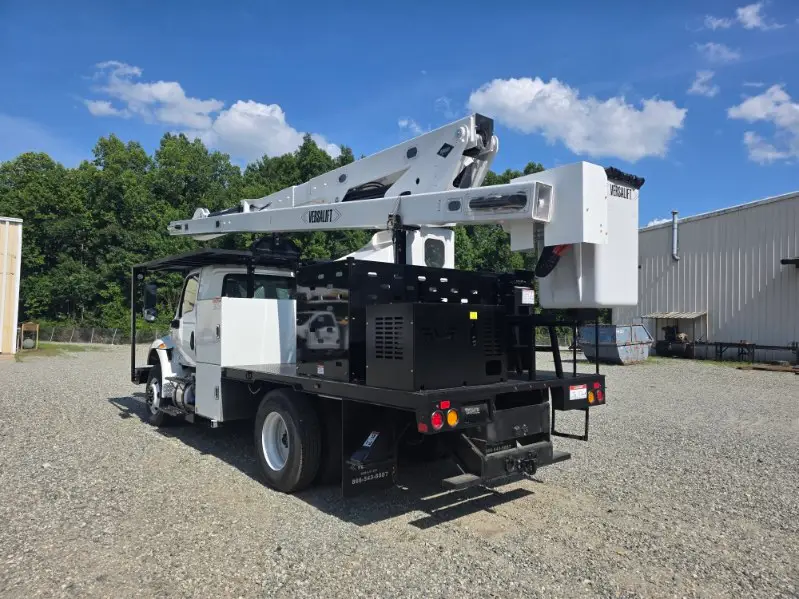

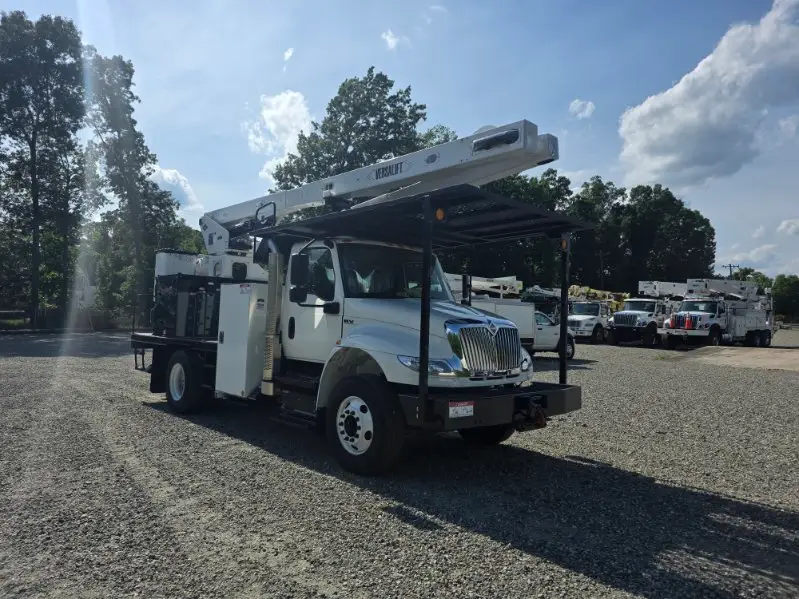

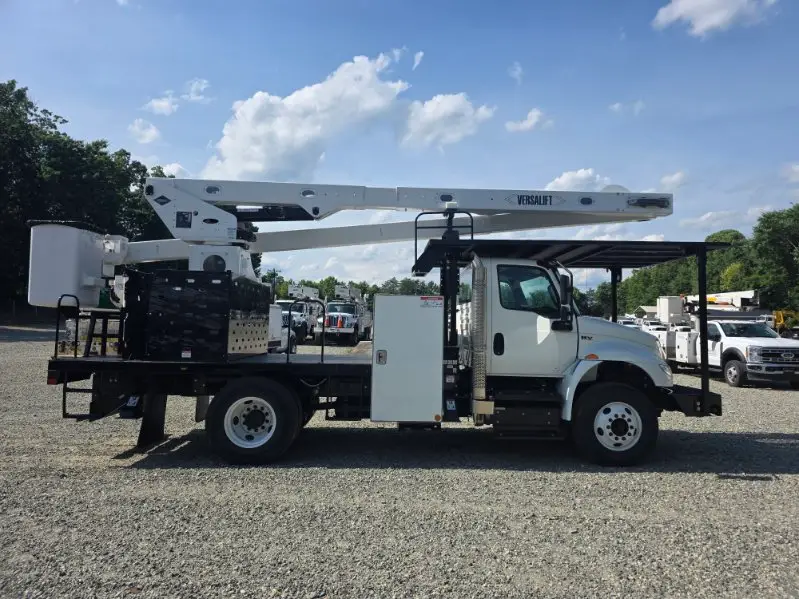

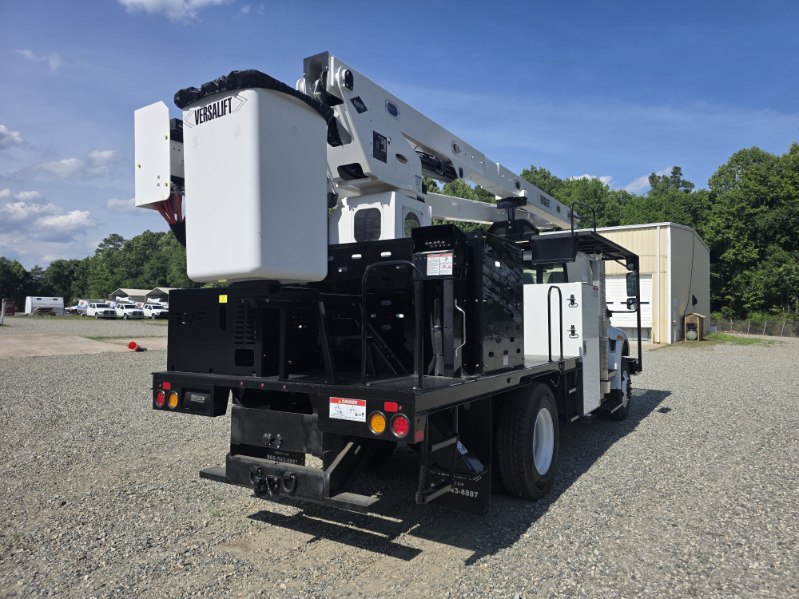

Bucket Truck – 70 ft Insulated Overcenter Articulated Reverse Mount with 10ft elevator

• High Strength Lower Weight Steel on the booms, One lift cylinder at the knuckle reduces weight making the unit lighter on the truck and suspension • Non Lube bearings at pivot points reduces maintenance time and eliminates personnel avoiding those hard to reach areas (3 grease fittings total on whole unit) Dependability of operation and lowest down time on the market.• Upper Control Guards are one piece only and open on the bottom allowing debris and woods shavings to escape • Outrigger/Boom Interlocks make sure the outriggers are making positive contact with the ground before boom will operate • Outrigger valves with handles and not electric switches that can fail. If the hydraulic pump works our outriggers will work.
INDUSTRIES SERVED
Electric Power Distribution, Electric Utilities, FORESTRY & TREE CARE
TYPE
Overcenter
HEIGHT RANGE
65ft - 100ft
MODEL SERIES
VO

Product Overview

Working Height
75.83 ft (22.86 m)
Height to Bottom of Platform
70.83 ft (21.34 m)
Horizontal Reach Overcenter
50.67 ft (15.24 m)
Horizontal Reach Non-overcenter
46.5 ft (14.02 m)
Stowed Travel Height
12.75 ft (3.66 m)
Platform Capacity
450 lbs (204.12 kg)
Insulated or Non-insulated
Insulated
Material Handling
No

Specifications

Hydraulic System

Hydraulic Controls
Full Hydraulic
Operating Pressure
2900 psi (203.89 kg/cm²)
Flow Rate
7 gpm (26.5 lpm)
Filtration
10 micron return | 100 mesh suction
System Type
Open Center
Power Source
PTO Pump

Boom

Upper Boom Articulation
245°
Lower Boom Articulation
0° to +125°
Upper Boom Insulation Gap
214 in (5.44 m)
Lower Boom Insulation Gap
24 in (0.61 m)
Lower Boom Lift Eye Capacity
1500 lbs (680.39 kg)
Boom Rotation
Continuous

Vehicle Requirements

GVWR
32000 lbs (14514.88 kg)
Cab to Axle (minimum)
138 in (3.51 m)
