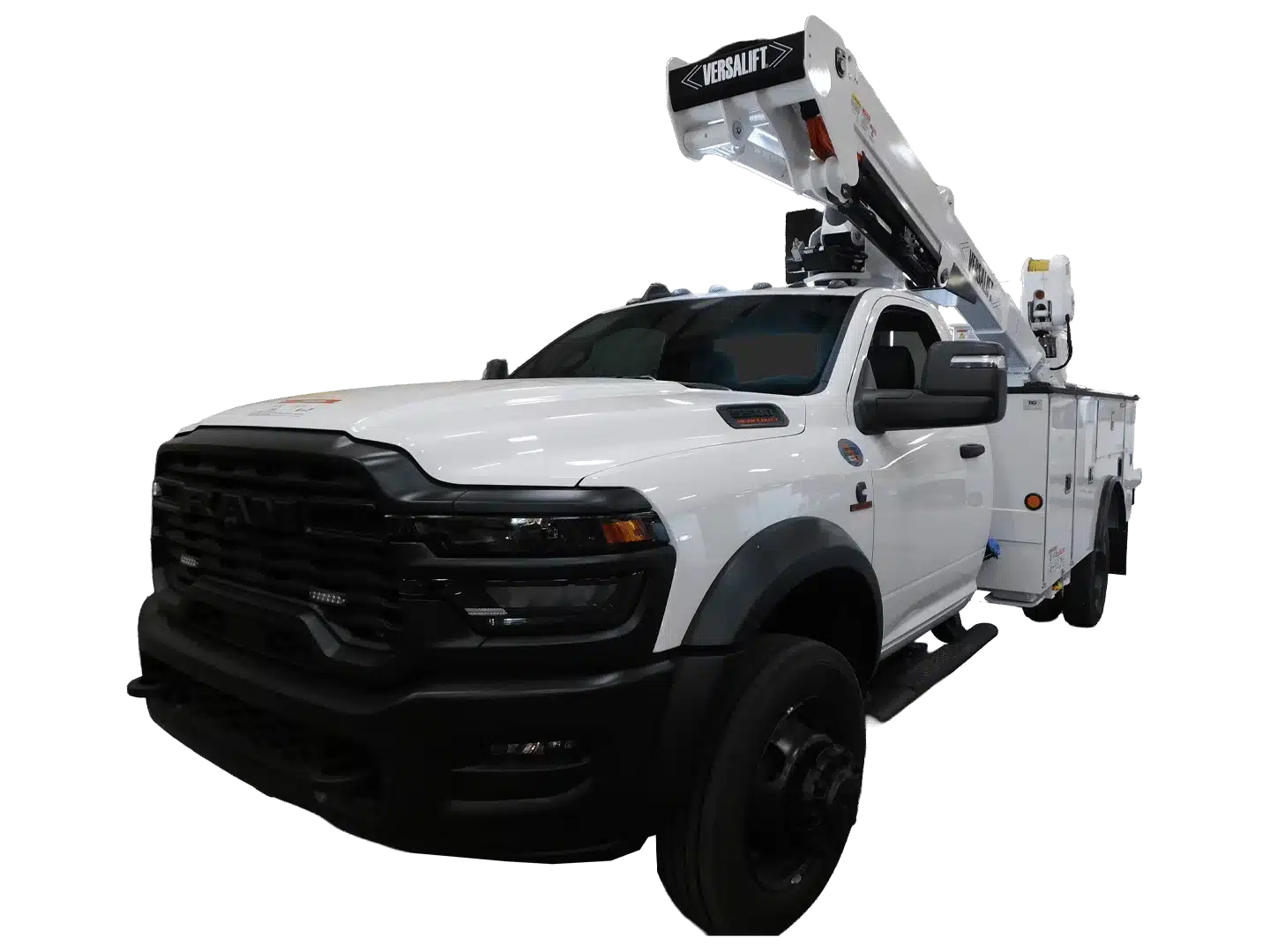

Bucket Truck VST-40-I

VST-40-I

Articulated Telescopic

Bucket Truck
40 ft Insulated Articulated/Telescopic

INDUSTRIES SERVED
Electric Power Distribution, Electric Utilities
TYPE
Articulated Telescopic
HEIGHT RANGE
29ft - 45ft
MODEL SERIES
VST
Request a quote
Locate a distributor
Download spec sheet

Product Overview

  • Working Height

    45.33 ft (13.72 m)

  • Height to Bottom of Platform

    40.33 ft (12.19 m)

  • Horizontal Reach

    30.17 ft (9.14 m)

  • Stowed Travel Height

    10.5 ft (3.05 m)

  • Platform Capacity

    600 lbs (272.15 kg)

  • Insulated or Non-insulated

    Insulated

  • Material Handling

    No

Specifications

Hydraulic System

  • Hydraulic Controls

    Full Hydraulic

  • Operating Pressure

    3000 psi (210.92 kg/cm²)

  • Flow Rate

    6 gpm (22.71 lpm)

  • Filtration

    10 micron return | 100 mesh suction

  • System Type

    Open Center

  • Power Source

    PTO Pump

Boom

  • Lower Boom Articulation

    0 to +87°

  • Inner/Outer Boom Articulation

    -25° to +85°

  • Inner Boom Extension

    103 in (2.62 m)

  • Upper Boom Insulation Gap

    46 in (1.17 m)

  • Lower Boom Insulation Gap

    12 in (0.3 m)

  • Lower Boom Lift Eye Capacity

    1000 lbs (453.59 kg)

  • Boom Rotation

    Continuous

Vehicle Requirements

  • GVWR

    17500 lbs (7937.83 kg)

  • Cab to Axle (minimum)

    84 in (2.13 m)
