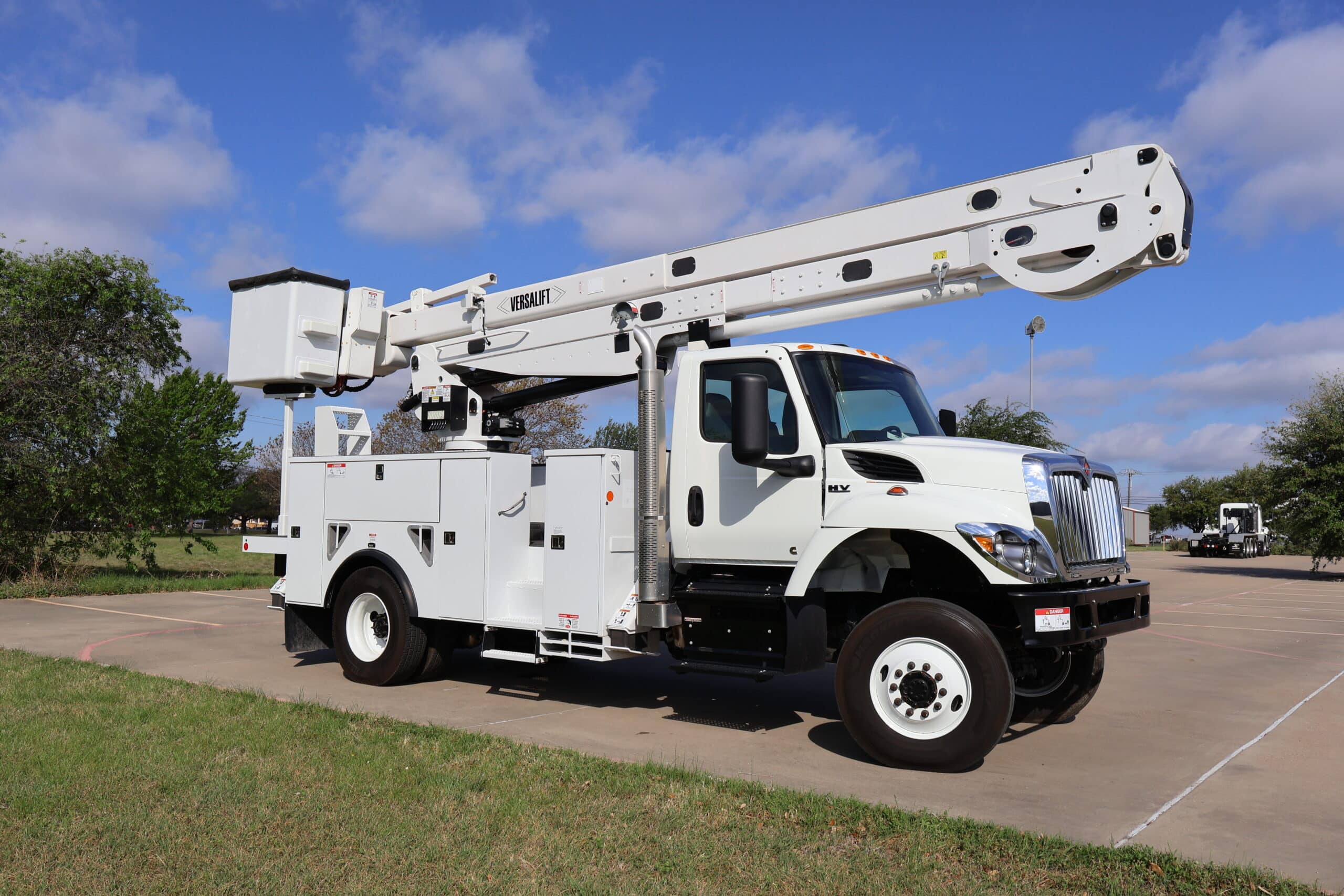

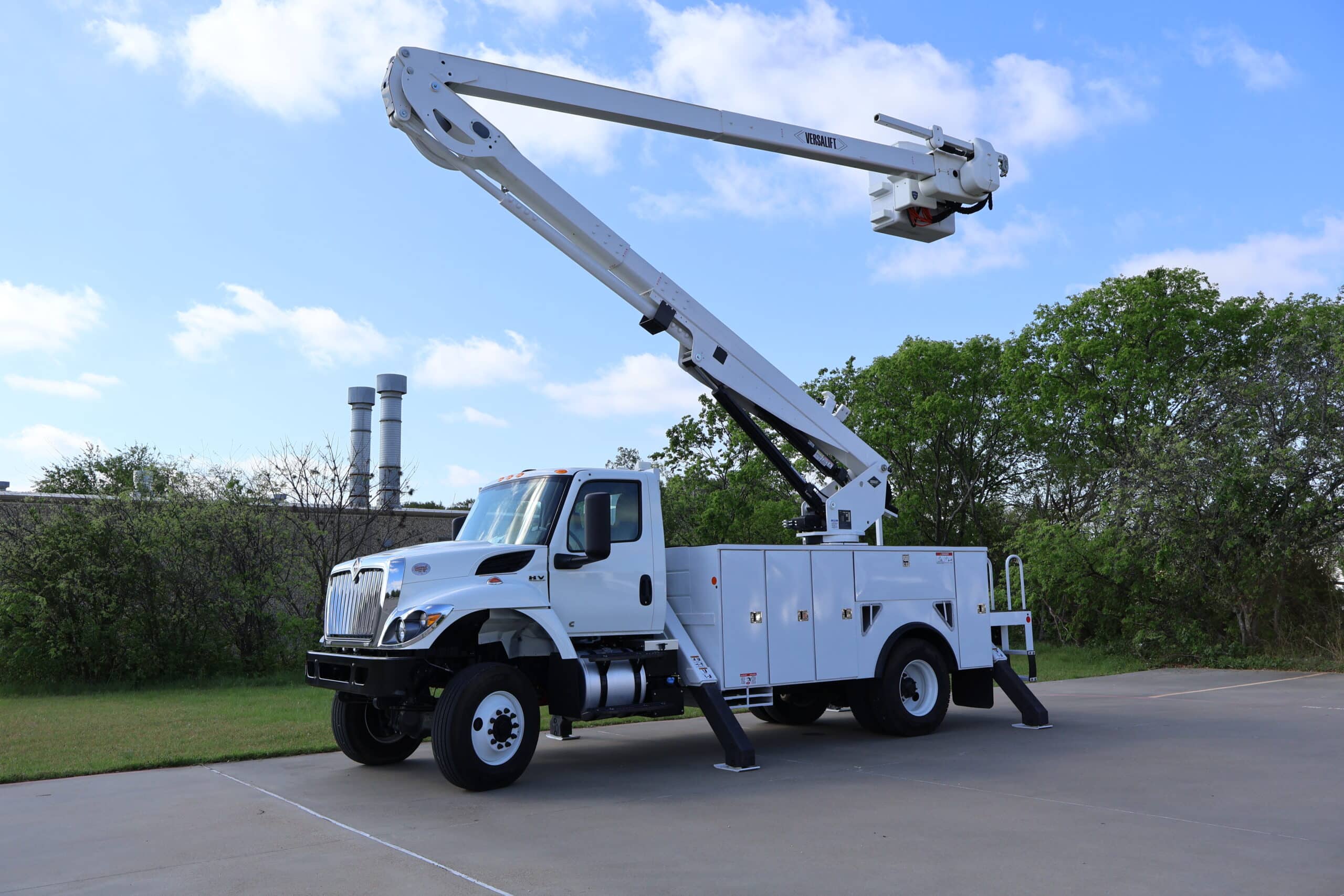

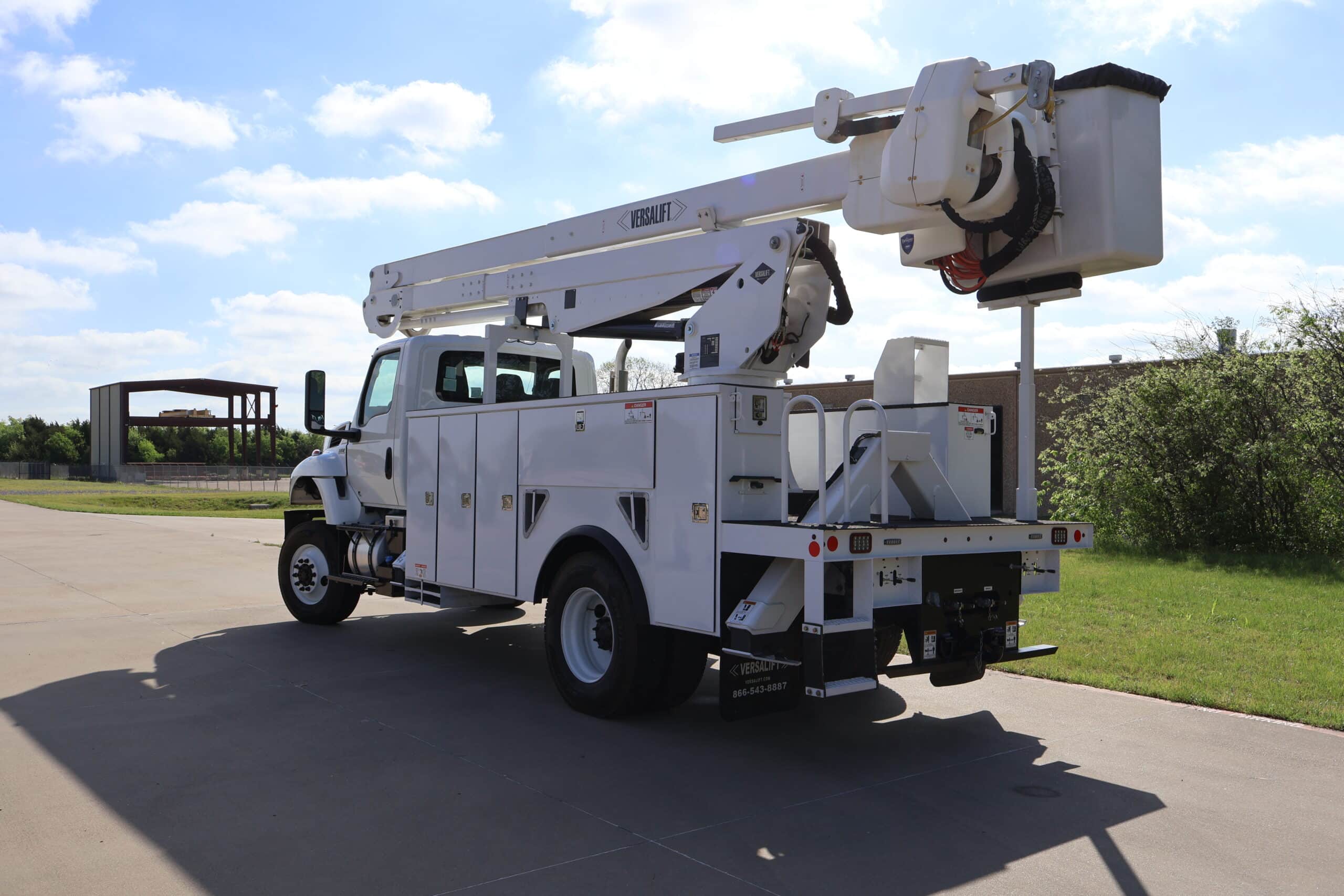

VN-555-MHI 2025 INTL HV607 4X4 Reading

Product Overview

• Product Line: Non-Overcenter Material Handler
• Industries Served: Electric Utilities, Telecommunications, Sign, Light & Traffic
• Height to Bottom of Platform: Up to 55 ft 6 in
• Working Height: Up to 60 ft 6 in
• Horizontal Reach: Up to 42 ft 10 in
• Stowed Travel Height: Up to 12 ft 4 in
• Single 1-Man Platform Capacity: Up to 400 lbs
• Single 2-Man Platform Capacity: Up to 700 lbs
• Platform Rotation: 90°
• Boom Rotation: 360° Continuous

Hydraulic System

• Operating Pressure: Up to 3000 psi
• Flow Rate at Engine Idle: Up to 8 gpm
• Flow Rate with Auto Throttle Control Engaged: Up to 12 gpm
• System Type: Open Center

Boom

• Upper Boom Articulation: 192° Relative to Lower Boom
• Lower Boom Articulation: 120°

Insulation Gap

• Upper Boom: Up to 9 ft
• Lower Boom: Up to 18 in

Material Handling

• Maximum Jib Capacity: Up to 2000 lbs

Cab and chassis specifications include the following:

• 2025 International HV607 4X4 cab and chassis
• Cummins B6.7 325 HP diesel engine @ 2400 RPM, 725 lb-ft Torque @ 1800 RPM
• Allison 3500 RDS automatic transmission
• 33,000 lb. GVWR: 13,000 lb. front GAWR and 21,000 lb. rear GAWR
• 5×8.25 powder coated steel disc wheels with 11R22.5 tires.
• 124 inch C.A.
• Driver seat air suspension, passenger fixed two man bench seat
• Engine block heater 120V/1000W
• Power windows and door locks
• Air brake system
• Back up alarm
• Air conditioning and AM/FM radio
• Painted Winter White
• Full chassis specifications available upon request

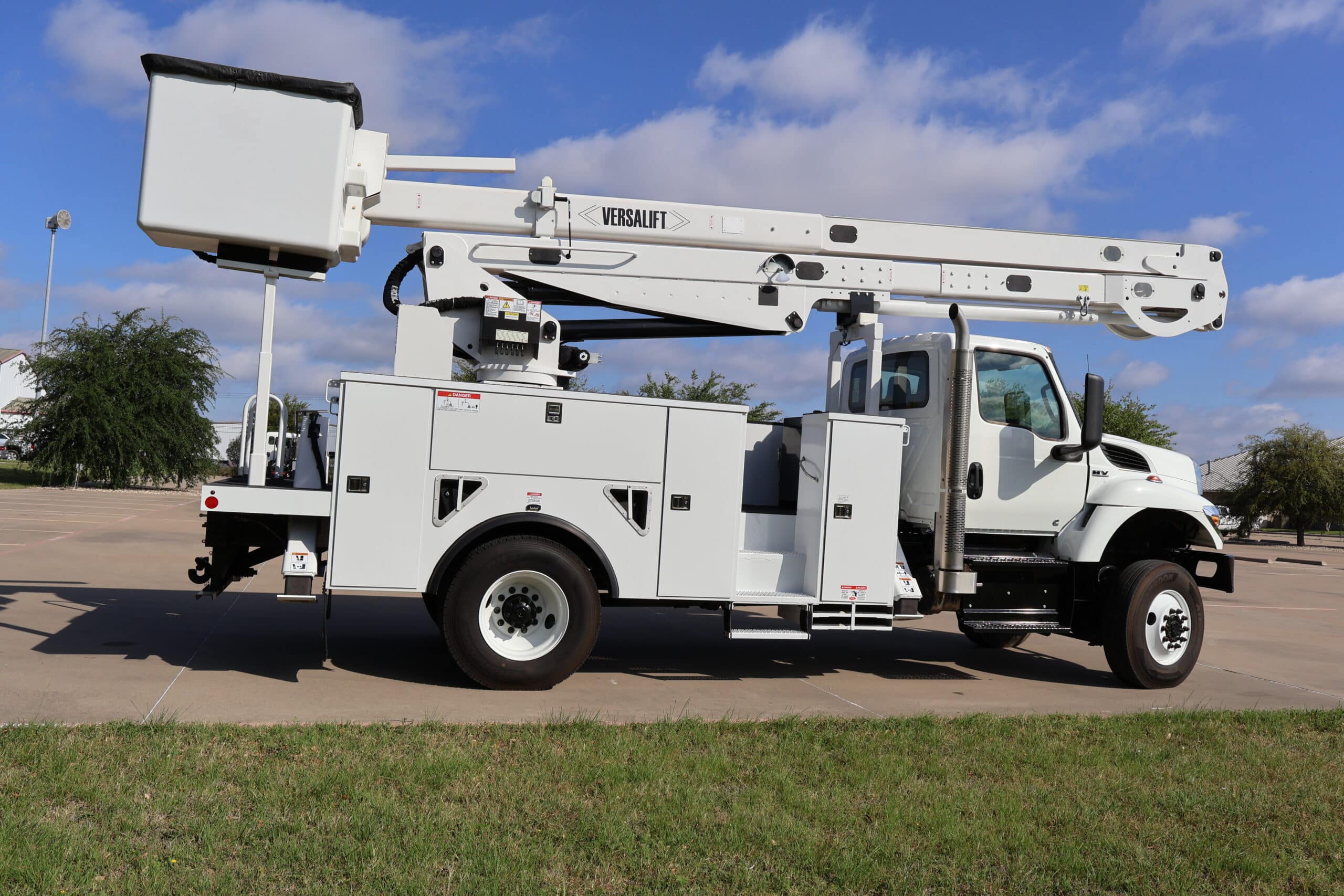

156 in. x 48 in. x 94 in. line body including the following:

• Stainless steel automotive rotary type door latches and hinges.
• Chain stops on all doors.
• Rubber rolled crown type fenders and automotive bulb type weather stripping.
• Master door lock system.
• Outrigger pad storage holders with pendulum retainers.

Street side compartments:

• 1st vertical: 24 in. – Five (5) fixed material hooks (1-3-1).
• 2nd vertical: 24 in. – Two (2) adjustable shelves with dividers
• 3rd vertical: 24 in. – Two (2) adjustable shelves with dividers
• Horizontal: 60 in. – Adjustable dividers installed in compartment bottom
• Rear vertical: 24 in. – Two (2) adjustable shelves with dividers.
• Hot stick shelf: 156 in. long with rear dropdown access door.

Curbside compartments:

• 1st vertical: 24 in. – Five (5) fixed material hooks (1-3-1).
• 2nd vertical: 24 in. – Tread plate access steps to bed area with grab handle on each side
• 3rd vertical: 24 in. – Two (2) adjustable shelves with dividers
• Horizontal: 60 in. – One (1) removable divider shelf with dividers
• Rear vertical: 24 in. – Two (2) adjustable shelves with dividers.
• Tail shelf: 30 in. tread plate tail shelf.
• Rear lighting: Lamp light bar installed at rear of tail shelf and rubber mounted recessed rear lighting kit with LED lights.
• Wheel chock storage: – One (1) each side built into wheel wells.

Installation includes the following:

• Install VERSALIFT VN-555-MHI, mounting hardware, PTO and pump.
• Install and paint Line Body and accessories.
• Install main and auxiliary A-frame outriggers with interlock system.
• Install BP-100A pintle hitch, reinforcements, and 7 prong trailer connector.
• Install two (2) strobe lights in front grill and two (2) amber strobe lights in rear tailshelf.
• Install mud flaps, outrigger pad holders, slope indicators, access steps and handrails.
• Relocate glad hands to rear of chassis.
• Install grounding kit system, park brake interlock system and quick disconnect fittings.
• Paint black non-skid on body floor.
• Furnish outrigger pads, wheel chocks, fire extinguisher, and 3 piece triangle reflector kit.
• Test ride completed unit for one (1) hour.
• Test and certify per ANSI A92.2
