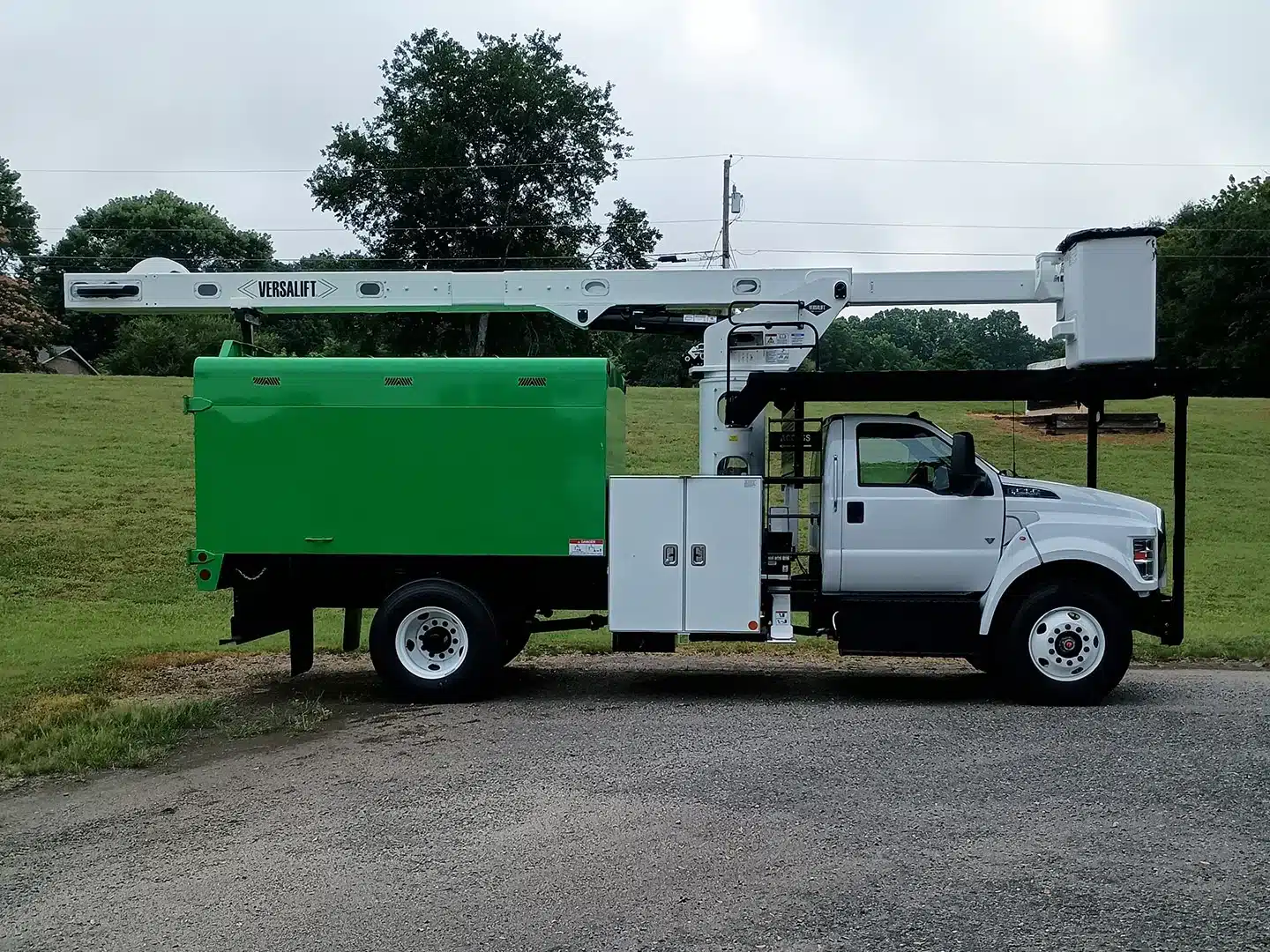

VO-260-REV Ford F-750 4×2 Chip Box

VO-260-REV Ford F-750 4×2 Chip Box

Insulated - Overcenter

Insulated Overcenter Articulated Reverse Mount Aerial Device

Product Overview

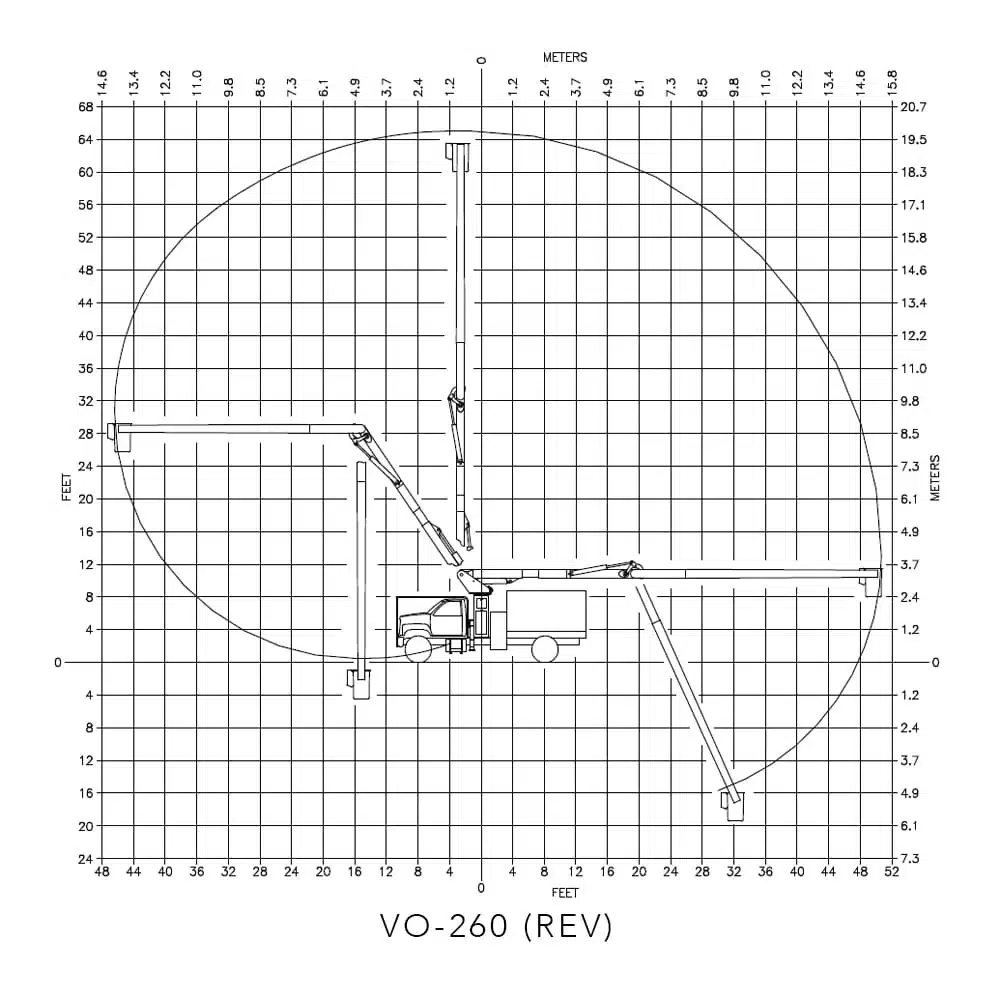

Working height:
65'
Horizontal Reach:
49.6'
Platform Capacity:
400 lbs
Material Handling:
No
Insulation:
Yes
Condition:
New
Category:
Completed Units
Industries:
Forestry/Tree Care, Power Distribution, Utilities
Manufacturer:
Versalift
Location:
Shelby, NC
Retail Price:
Please Contact Us
Non-Overcenter Reach:
46.2

Description

Chassis Specifications

  • 2025 Ford F-750 regular cab chassis
  • 335 HP 7.3L gas engine
  • 6-speed automatic transmission
  • 11R22.5 tires with traction tires rear
  • Hydraulic brakes
  • 6.50 axle ratio
  • 126” CA
  • 25,999 lb. GVWR
  • Chrome grill surround
  • 50-gallon steel fuel tank
  • Jump start stud
  • 40/20/40 fixed driver & fixed passenger seat with fold down center console – vinyl
  • Front tow hooks
  • Tilt/telescoping steering column
  • Oil life monitor
  • Power windows and door locks
  • Key fob activated doors
  • AM/FM/Clock/Bluetooth radio
  • Dual heated side mirrors
  • Hill start assist
  • Air conditioning
  • Engine hour meter
  • White in color

Aerial Lift Specifications

  • Versalift over center, model VO260 reverse mount
  • 65 ft vertical working height
  • 50 ft side reach
  • Upper boom with 245-degree travel
  • Lower boom with 124 degree travel
  • 360 continuous rotation
  • Both booms dielectrically tested
  • 24” x 24” x 42” one man bucket – 350 lb. capacity with liner & cover
  • Manual tilt to dump water & rescue
  • Pistol grip control at bucket
  • Hydraulic tool circuit at bucket
  • A-frame outriggers, outside interlocks, outrigger motion alarm
  • Electric shift PTO

Body Specifications

  • 132” L x 60” H x 96” W chip box (Green in Color) with front cutout
  • Curbside interior ladder box with pruner shelf and rear door
  • LED light package with 6-pin & 7-RV trailer plugs
  • 6-point LED amber strobe lights
  • Undercoated
  • Vents in upper side panels
  • 20,000 lb. capacity tow package with pintle hook
  • Two (2) wheel chock holders and chocks
  • Hoist & hydraulics
  • Fire extinguisher, DOT triangle kit
  • Road tested & DOT inspected
  • Toolbox: 4-door compartment, shelving, and rope hooks, locking doors with door seal, and an additional locking system for added security
