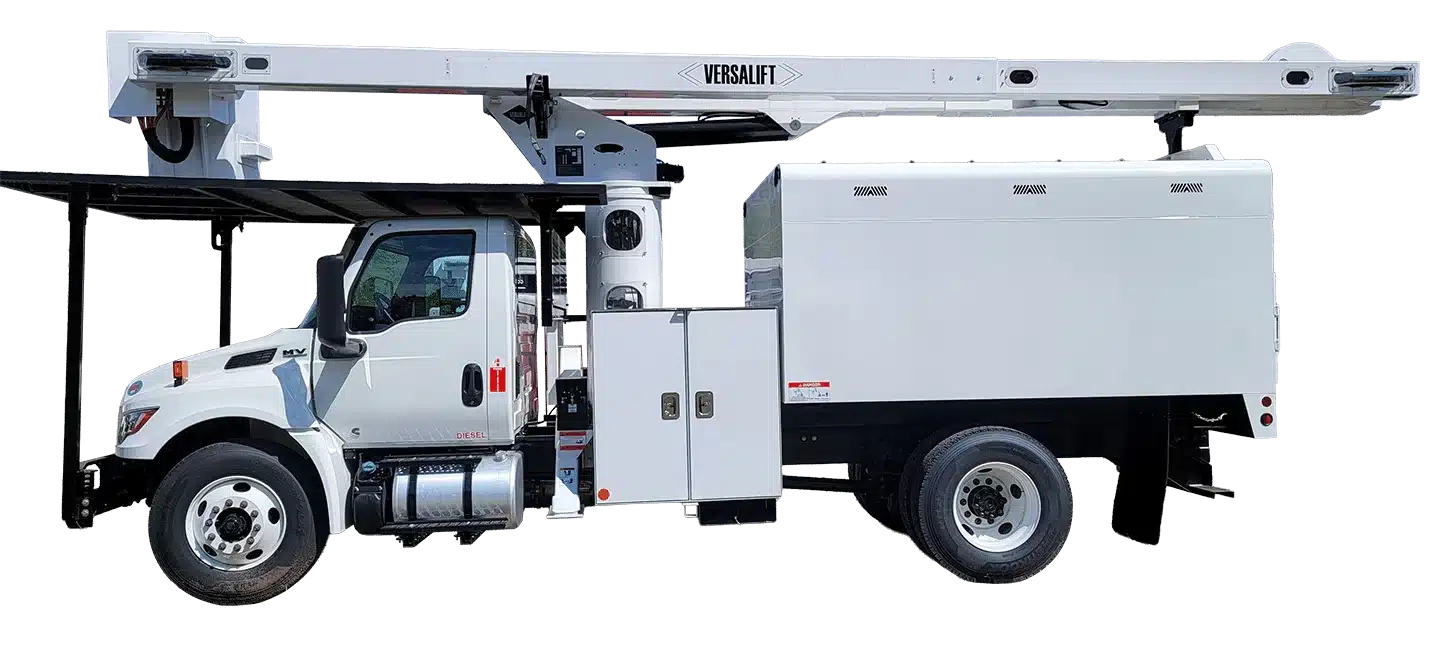

VO-260-REV International MV607 Chip Box

VO-260-REV International MV607 Chip Box

Insulated - Overcenter

Insulated Overcenter Articulated Reverse Mount Aerial Device

Request a Quote
Book a demo

Product Overview

Working height:
65'
Horizontal Reach:
49.6'
Platform Capacity:
400 lbs
Material Handling:
No
Insulation:
Yes
Condition:
New
Category:
Completed Units
Industries:
Forestry/Tree Care, Power Distribution, Utilities
Manufacturer:
Versalift
Location:
Shelby, NC
Retail Price:
Please Contact Us
Non-Overcenter Reach:
46.2

Description

Chassis Specifications

  • 2025 International MV607 4×2, regular cab chassis
  • 300 HP Cummins diesel
  • Allison 2500 RDS automatic transmission
  • 25,999 GVWR
  • Engine exhaust brake
  • Engine block heater
  • Driver controlled rear locking differential
  • Air brakes
  • 50-gallon aluminum fuel tank
  • Front tow hooks
  • 11R22.5 tires with traction tires rear
  • Vinyl bench seat
  • Air conditioning
  • AM/FM/Bluetooth radio
  • White in color

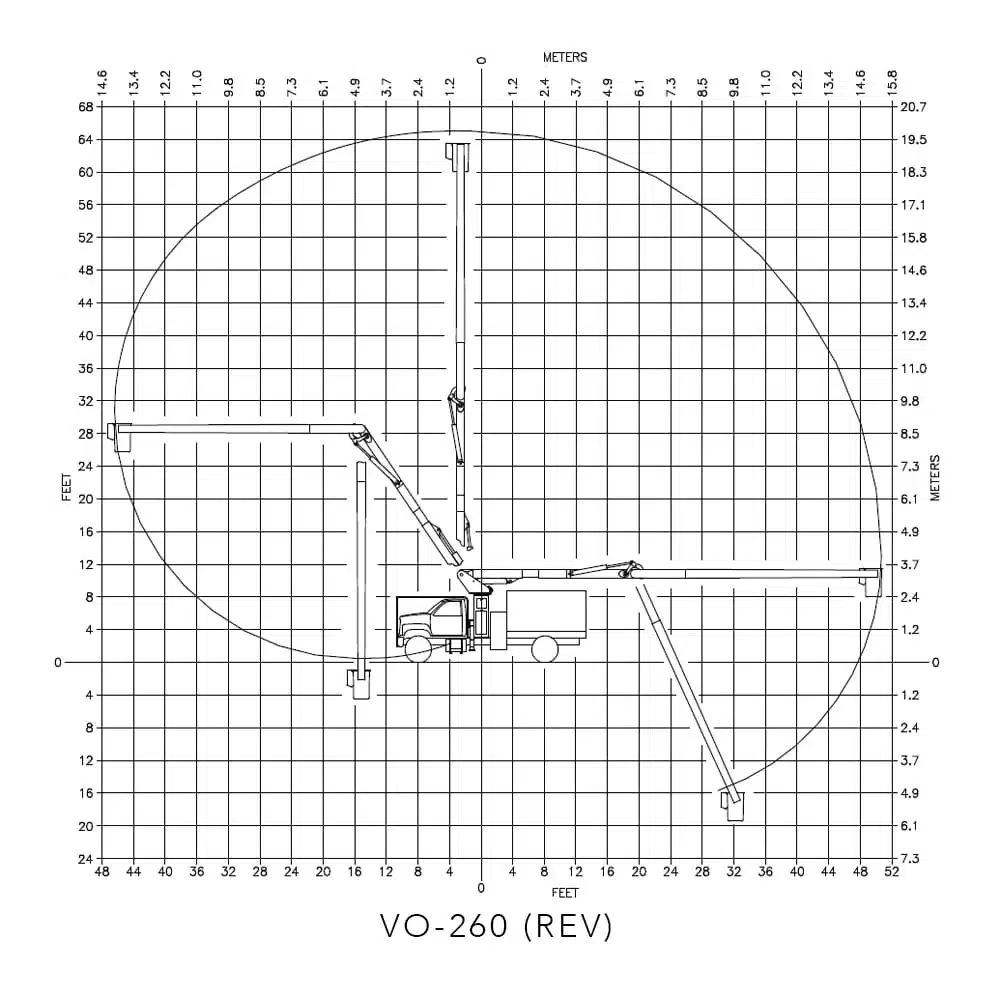

Aerial Lift Specifications

  • Versalift over center, model VO260 reverse mount
  • 65 ft vertical working height
  • 50 ft side reach
  • Upper boom with 245-degree travel
  • Lower boom with 124 degree travel
  • 360 continuous rotation
  • Both booms dielectrically tested
  • 24” x 24” x 42” one man bucket-350 lb. capacity with liner & cover
  • Manual tilt to dump water & rescue
  • Pistol grip control at bucket
  • Hydraulic tool circuit at bucket
  • A-frame outriggers, outside interlocks, outrigger motion alarm
  • Electric shift PTO

Body Specifications

  • 132” L x 60” H x 96” W chip box with front cutout

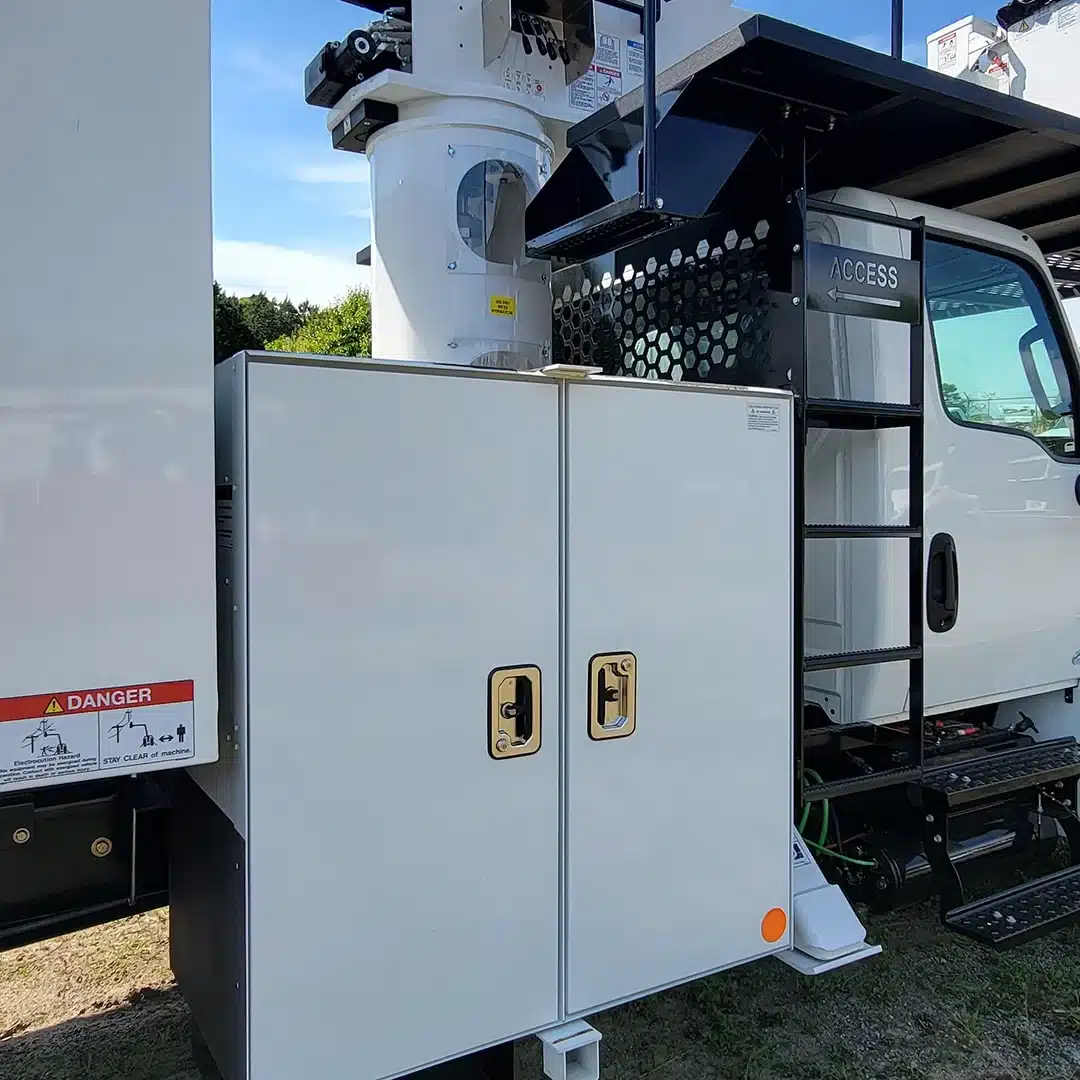

  • Curbside interior ladder box with pruner shelf and rear door
  • LED light package with 6-pin & 7-RV trailer plugs
  • 6-point LED amber strobe lights
  • Undercoated
  • Vents in upper side panels
  • White in color
  • 20,000 lb. capacity tow package with pintle hook, two (2) wheel chock holders and chocks
  • Hoist & hydraulics, Fire extinguisher, DOT triangle kit
  • Road tested & DOT inspected
  • Toolbox: 4-door compartment, shelving, and rope hooks, locking doors with door seal, and an additional locking system for added security
