Details
Product Line: Articulated Telescopic
Truck Industries: Electric Utilities, Electric Power Distribution, Forestry & Tree Care
Height to Bottom of Platform: 54 ft 7 in (16.6 m)
Horizontal Reach Overcenter: Up to 33 ft 5 in (10.2 m)
Working Height: 59 ft 7 in (18.2 m)

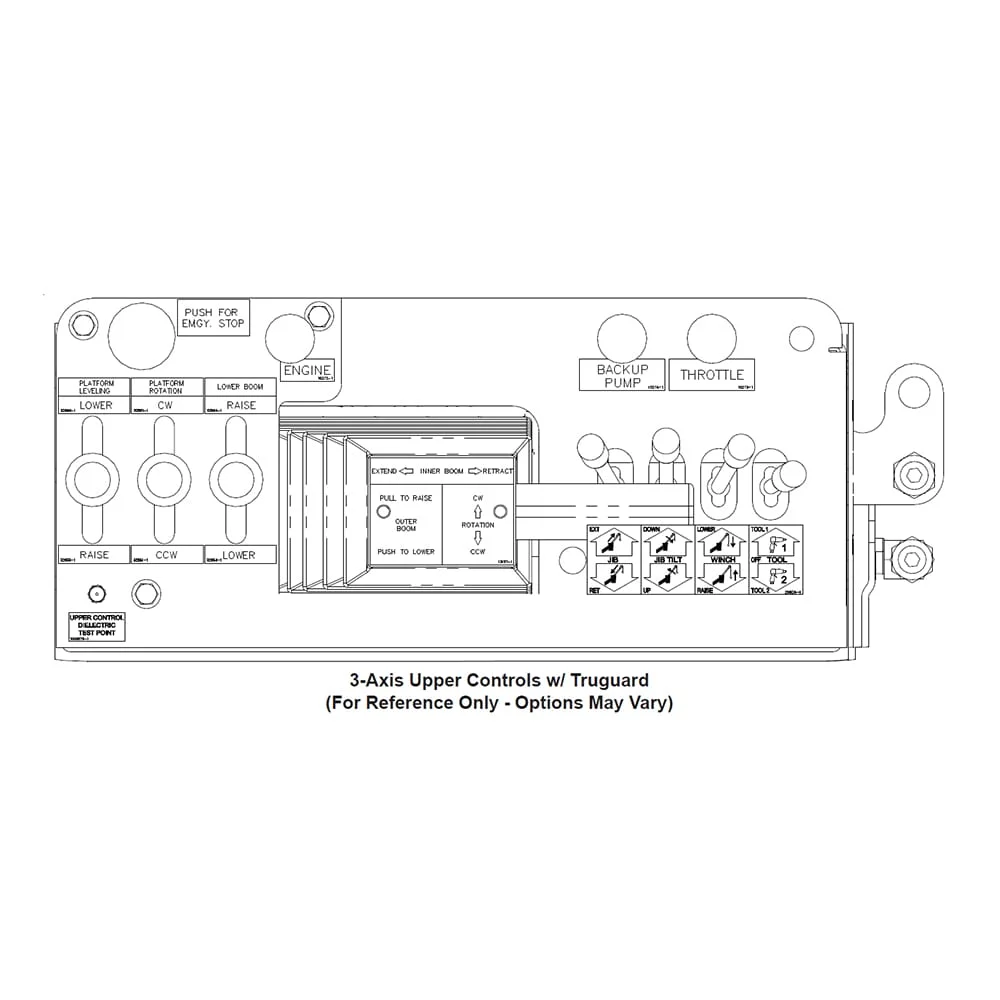

Hydraulic Controls: Full Hydraulic, right-hand single-stick TruGuard™ isolated controls
Hydraulic Operating Pressure: 3000 psi (210 bar)
Hydraulic Flow Rate: 6 gpm (22.7 lpm)
Hydraulic Filtration: 10 micron return | 100 mesh suction
Hydraulic System Type: Open Center
Hydraulic Power Source: PTO Pump
Backup Pump: 12-volt DC auxiliary
Upper Boom Articulation: Side-mounted telescopic upper boom; articulation not numerically specified
Lower Boom Articulation: Articulating lower boom; 12 in (0.305 m) chassis insulation gap
Upper Boom Insulation Gap: 54 in (1.37 m) fully retracted
Lower Boom Insulation Gap: 12 in (0.305 m) chassis insulating system
Lower Boom Lift Eye Capacity: N/A
Boom Rotation: 360° continuous with slip rings
Platform Capacity: 600 lbs (272 kg)
Platform Features: Fiberglass 24 x 48 x 42 in platform with liner, vinyl cover, and safety harness/lanyard
Dual Arm Articulating Jib / Winch: Up to 1,000 lbs (454 kg) capacity, insulated
