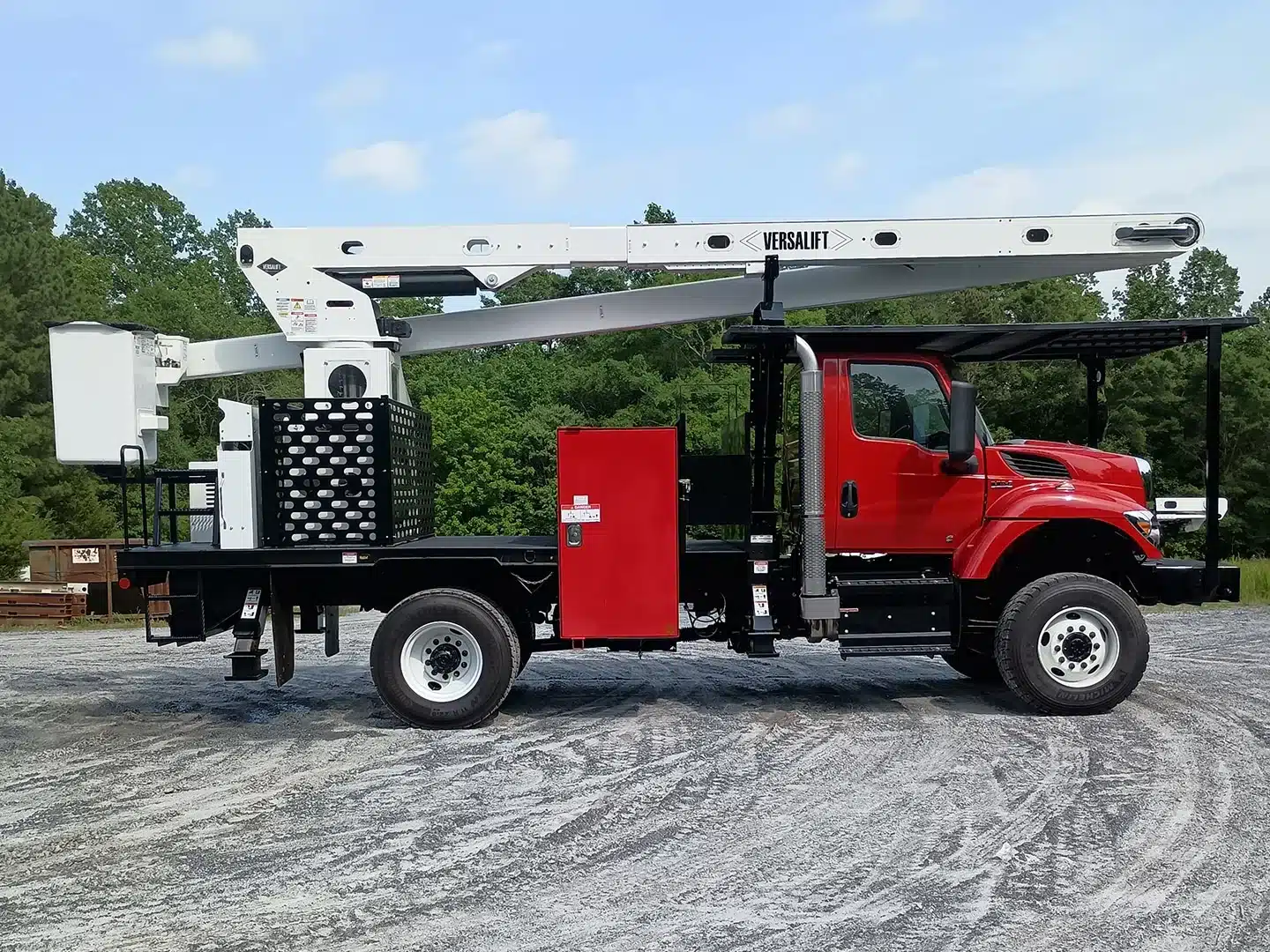

VO-270-EREAR International MV607 Flatbed

VO-270-EREAR International MV607 Flatbed

Insulated - Overcenter

Insulated Overcenter Articulated Rear Mount Aerial Device

Product Overview

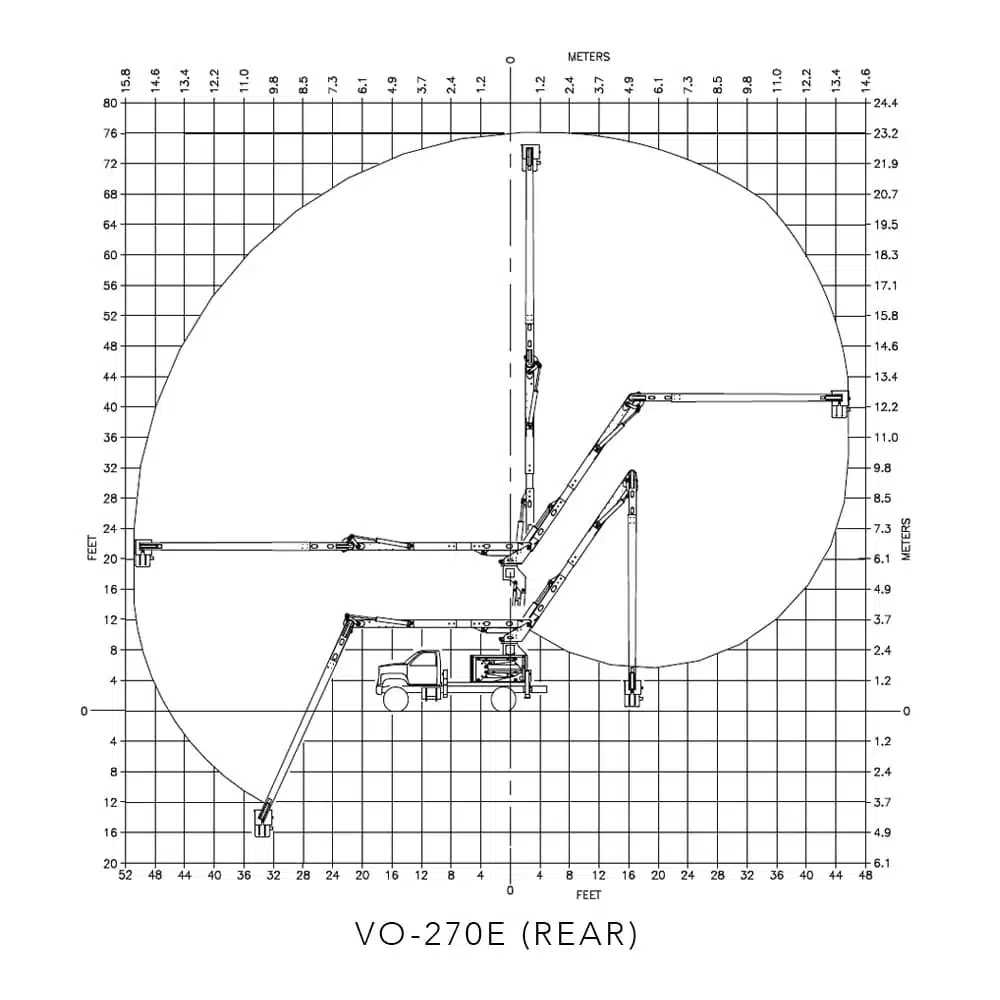

Working height:
75'
Horizontal Reach:
49.6'
Platform Capacity:
350 lbs
Material Handling:
No
Insulation:
Yes
Condition:
New
Category:
Completed Units
Industries:
Forestry/Tree Care, Power Distribution, Utilities
Manufacturer:
Versalift
Location:
Shelby, NC
Retail Price:
Please Contact Us
Non-Overcenter Reach:
45.5
Download Specification Sheet

Description

Chassis Specifications

  • 2025 International HV507 4×4, regular cab chassis
  • 325 HP 6.7L Cummins diesel
  • 3000 RDS Allison automatic transmission
  • 11R22.5 tires with traction tires rear
  • Front tow hooks
  • 14 front axle and springs
  • Air brakes
  • Engine exhaust brake
  • AM/FM/WB/Clock/Bluetooth
  • Chrome grill
  • Engine block heater
  • 21k rear axle
  • Air conditioning
  • 50-gallon aluminum fuel tank
  • Air ride driver seat w/ 2-person fixed seat
  • Heater mirrors, power windows and door locks
  • Driver controlled rear locking diff
  • Red in color

Aerial Lift Specifications

  • Versalift over center, model VO270 rear mount with elevator
  • 75 ft vertical working height
  • 50 ft side reach
  • Upper boom with 245 degrees travel
  • Lower boom with 124 degree travel
  • 360 continuous rotation
  • Both booms dielectrically tested
  • One man bucket-350 lb. capacity with liner & cover
  • Manual tilt to dump water & rescue
  • Pistol grip control at bucket
  • Hydraulic tool circuit at bucket
  • A-frame outriggers, outside interlocks, outrigger motion alarm
  • Electric shift PTO
  • Versalift Operator/parts manuals

Body Specifications

  • 12 ft steel flatbed (black in color)
  • 20,000 lb. front bumper winch
  • LED amber strobes front and rear
  • Cab guard
  • Back up alarm
  • 20,000 lb. capacity tow package with pintle hook
  • Two (2) wheel chock holders and chocks
  • Fire extinguisher, DOT triangle kit
  • Road tested & DOT inspected
  • Electric trailer brake control
  • Outrigger pads and holders
  • Toolbox: 34” W cross toolbox with locking doors and security bars (red in color) barn door driver’s side, 1-door passenger side
