Product Overview
Working Height
13.5 m
Platform Height
11.5 m

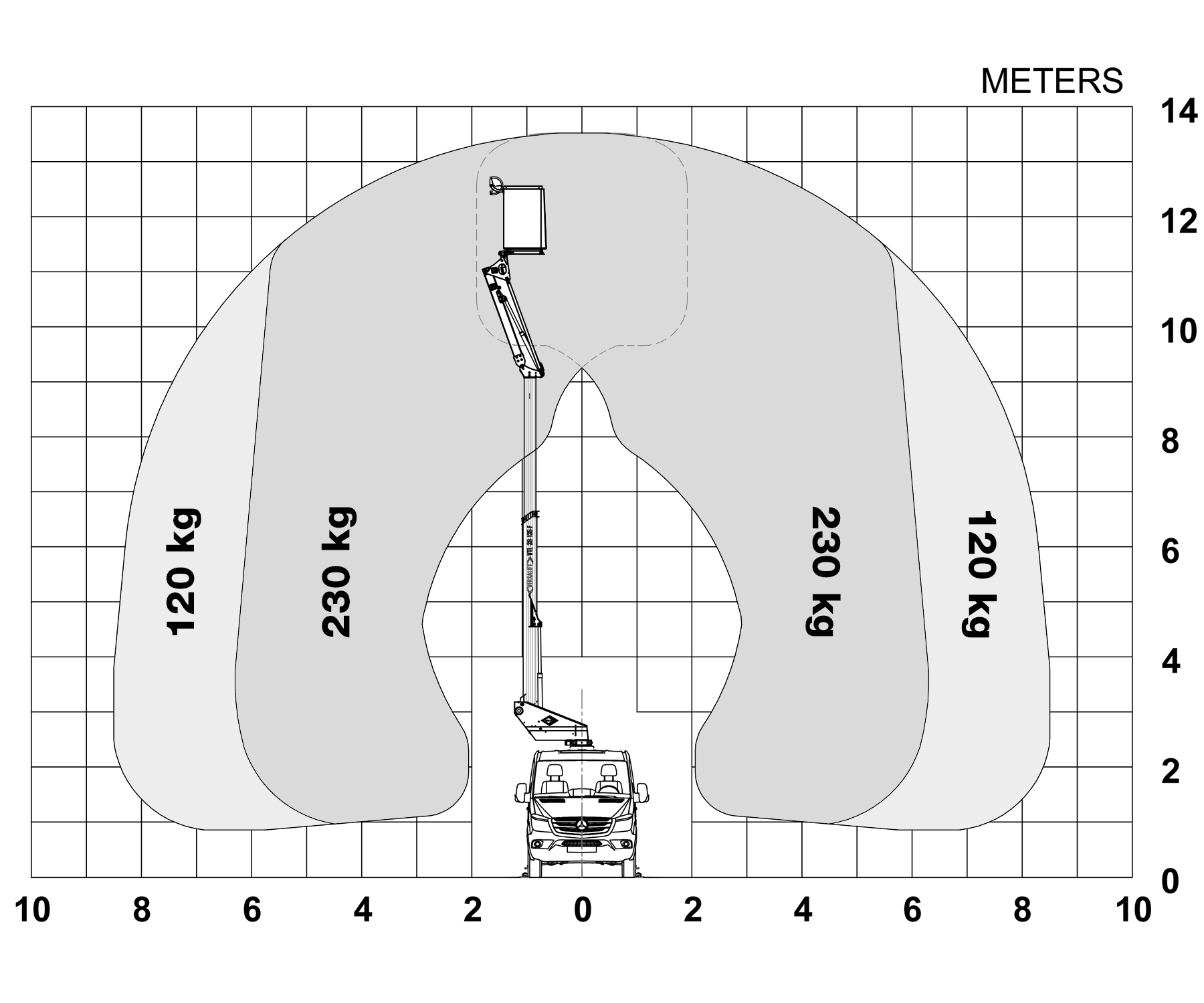

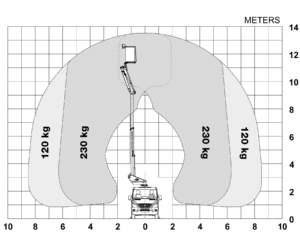

Max Outreach
3200 m
Max Capacity
230 kg
Lift Rotation
420°
Insulated or Non-insulated
Yes
Material Handling Option
No
Specifications
Base Vehicle
Mercedes-Benz Sprinter
Unique ID
V931L
Model
VTL-135-F
Base Lift
VTL-39-F

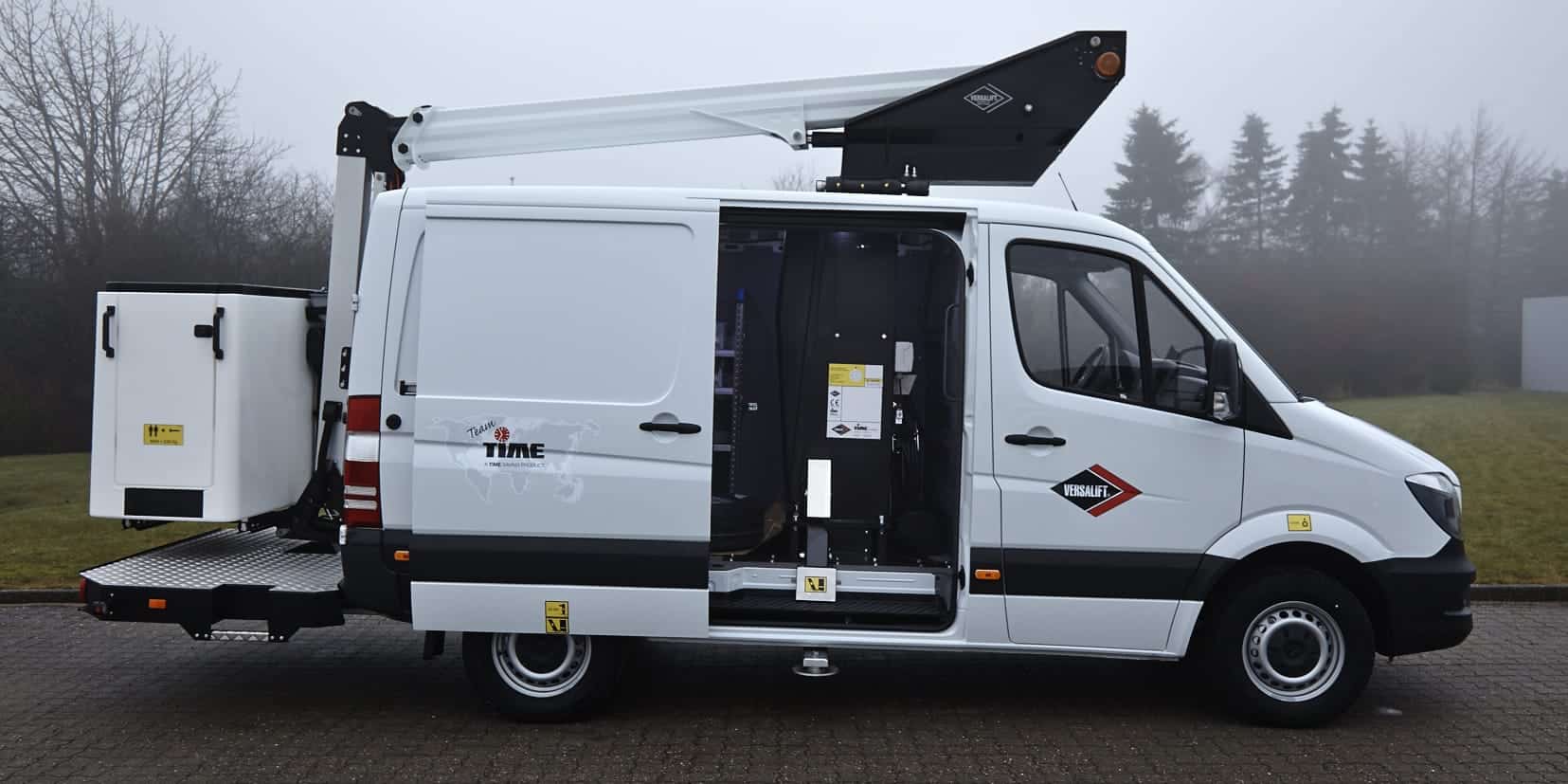

Platform Vehicle Type
Van mounted telescopic platform
Wheelbase
3250 cm
Total Length
6580 cm
Bucket
2 man Eco Fiberglass
Flyboom Articulation
140°
Slope Degrees
3/5°
Control system
LMC (Electrohydraulic)
Power source
PTO
Outriggers
A-frame
GVWR
3500 kg
Leftover payload
280
