Chassis Specifications
- 2025 Ford F-750 regular cab chassis
- 335 HP 7.3L gas engine
- 6-speed automatic transmission
- 11R22.5 tires with traction tires rear
- Hydraulic brakes
- 6.50 axle ratio
- 126” CA
- 25,999 lb. GVWR
- Chrome grill surround
- 50-gallon steel fuel tank
- Jump start stud
- 40/20/40 fixed driver & fixed passenger seat with fold down center console – vinyl
- Front tow hooks
- Tilt/telescoping steering column
- Oil life monitor
- Power windows and door locks
- Key fob activated doors
- AM/FM/Clock/Bluetooth radio
- Dual heated side mirrors
- Hill start assist
- Air conditioning
- Engine hour meter
- White in color
Aerial Lift Specifications

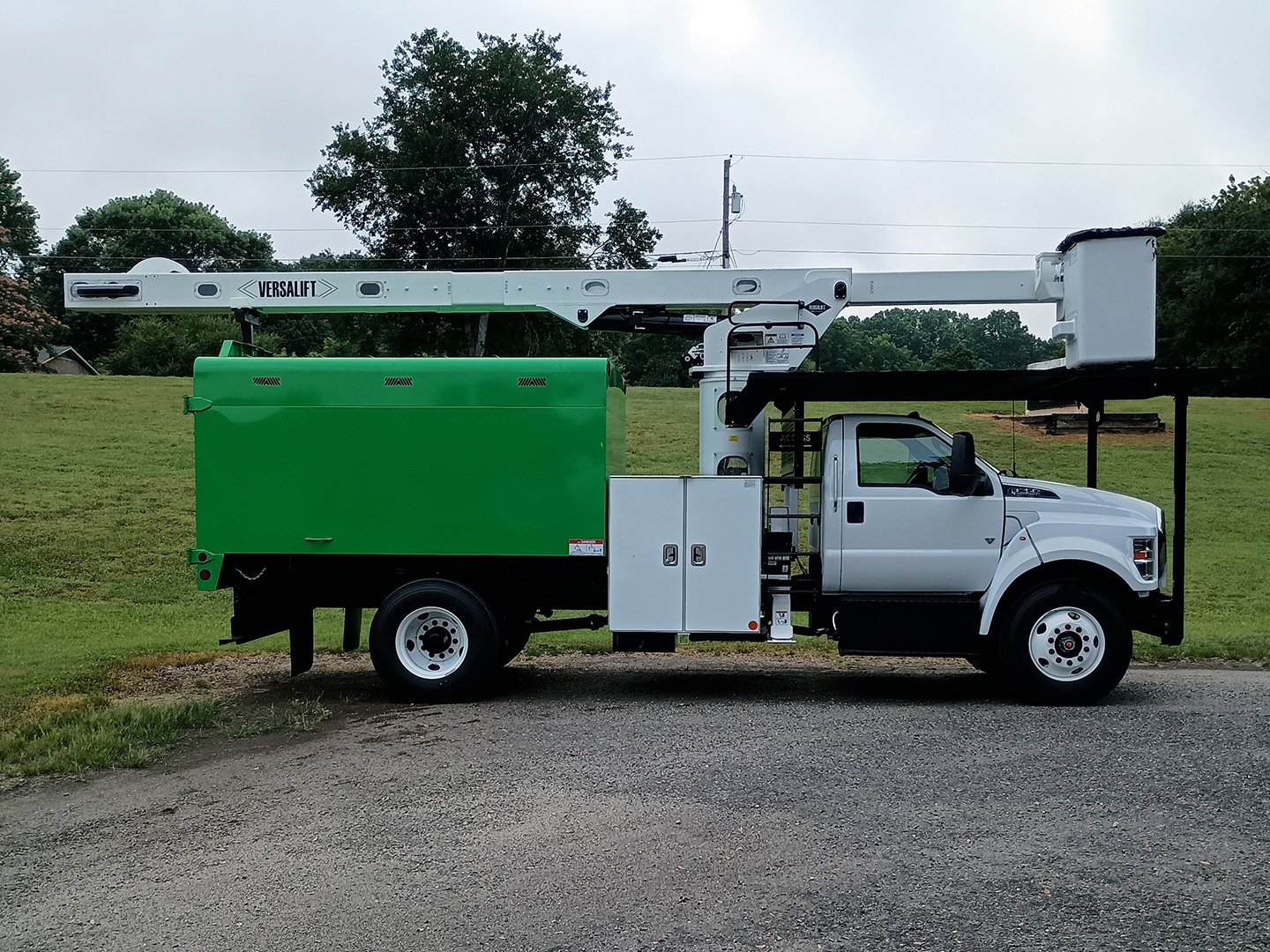

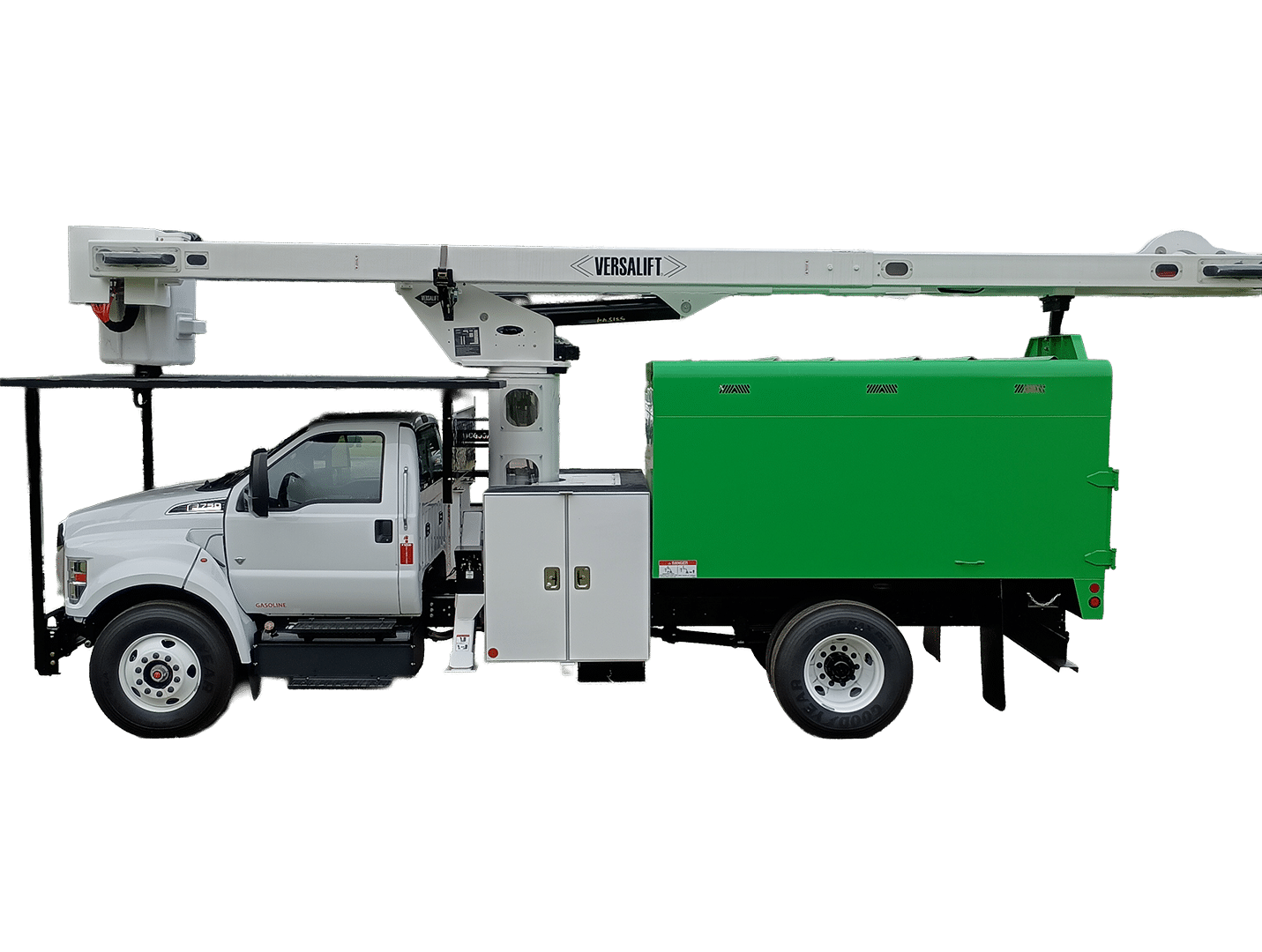

- Versalift over center, model VO260 reverse mount
- 65 ft vertical working height
- 50 ft side reach
- Upper boom with 245-degree travel
- Lower boom with 124 degree travel
- 360 continuous rotation
- Both booms dielectrically tested
- 24” x 24” x 42” one man bucket – 350 lb. capacity with liner & cover
- Manual tilt to dump water & rescue
- Pistol grip control at bucket
- Hydraulic tool circuit at bucket
- A-frame outriggers, outside interlocks, outrigger motion alarm
- Electric shift PTO
Body Specifications
- 132” L x 60” H x 96” W chip box (Green in Color) with front cutout
- Curbside interior ladder box with pruner shelf and rear door
- LED light package with 6-pin & 7-RV trailer plugs
- 6-point LED amber strobe lights
- Undercoated
- Vents in upper side panels
- 20,000 lb. capacity tow package with pintle hook
- Two (2) wheel chock holders and chocks
- Hoist & hydraulics
- Fire extinguisher, DOT triangle kit
- Road tested & DOT inspected
- Toolbox: 4-door compartment, shelving, and rope hooks, locking doors with door seal, and an additional locking system for added security
