Chassis Specifications
- 2024 International HV607 4×2, regular cab chassis
- 325 HP Cummins diesel
- Allison 3000 RDS automatic transmission
- 33,000 lb. GVWR
- Driver controlled rear locking differential
- Air brakes, air dryer
- 20,000 psi frame
- 50 gallon aluminum fuel tank
- 8.25R22.5 front tires
- 8.25R22.5 rear tires
- Air ride driver seat w/ 2-person fixed passenger seat with storage under
- Air conditioning
- Engine block heater
- Engine exhaust brake
- AM/FM/WB/Bluetooth/USB
- Trailer brake control
- White in color
Aerial Lift Specifications

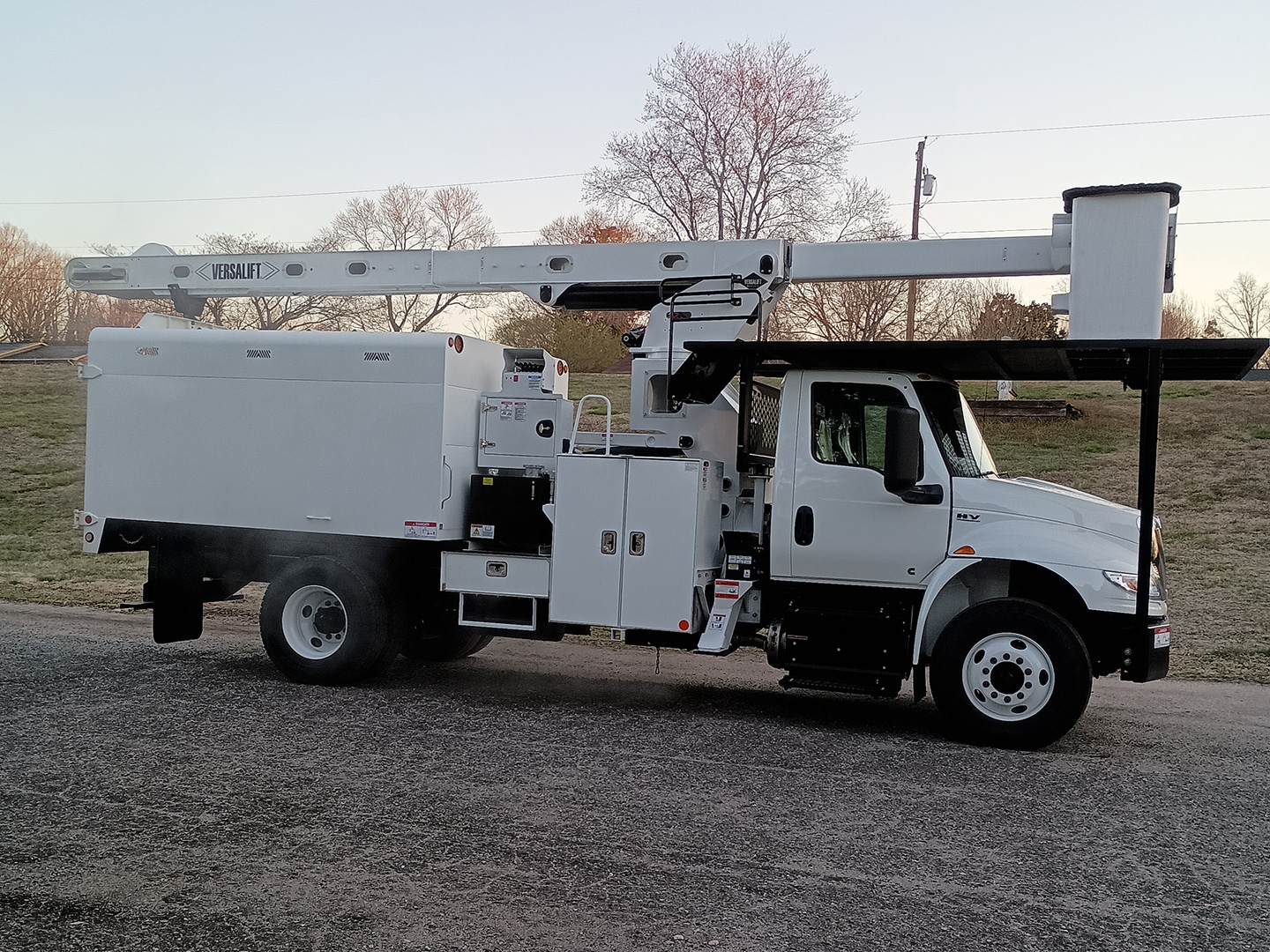

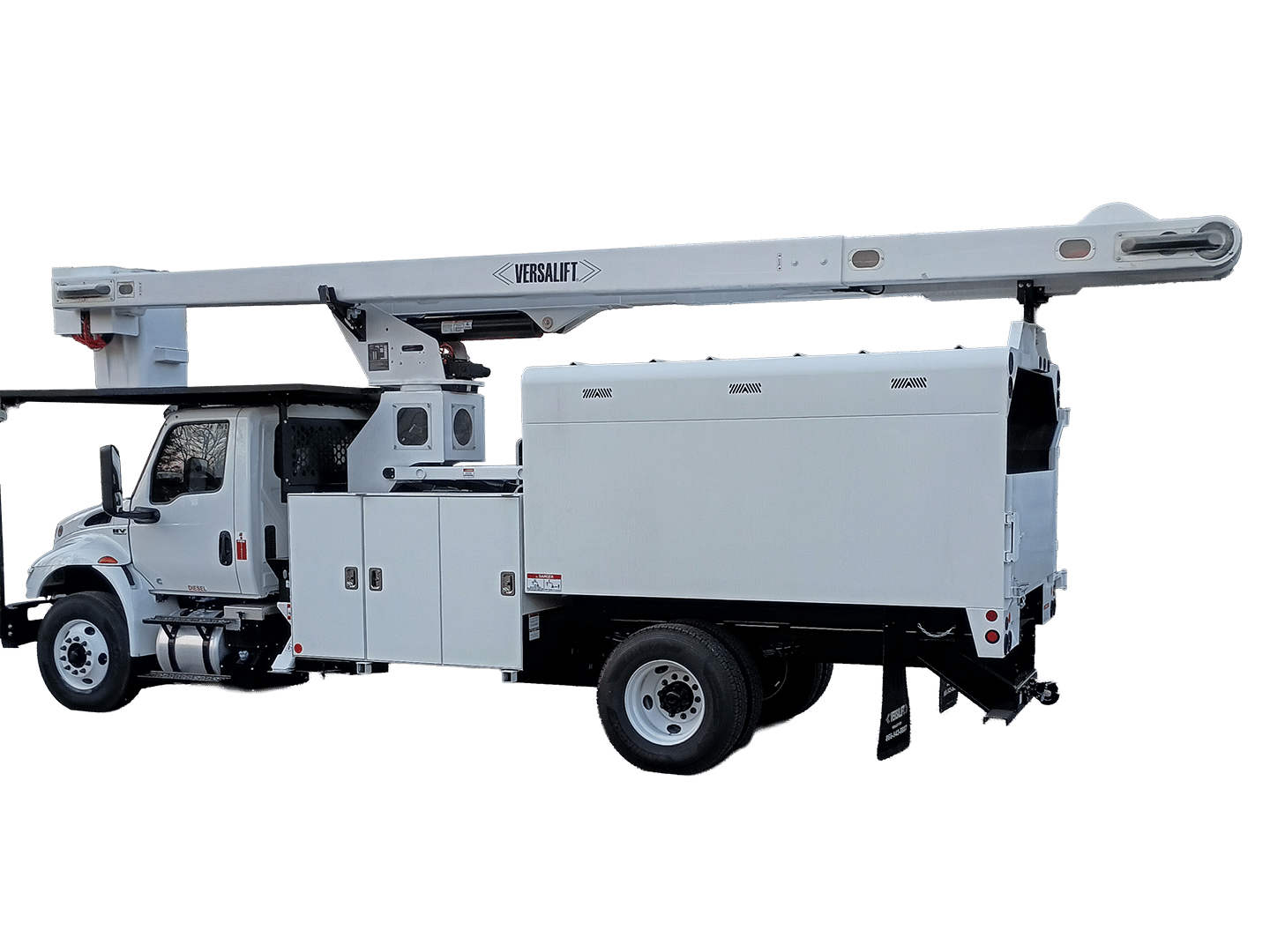

- Versalift over center, model VO270 reverse mount
- 75 ft vertical working height
- 50 ft side reach
- Upper boom with 245 degrees travel
- Lower boom with 124 degree travel
- 360 continuous rotation
- Both booms dielectrically tested
- One man bucket-350 lb. capacity with liner & cover
- Manual tilt to dump water & rescue
- Pistol grip control at bucket
- Hydraulic tool circuit at bucket
- A-frame outriggers, outside interlocks, outrigger motion alarm
- Electric shift PTO
- Versalift Operator/parts manuals
Body Specifications
- 132” L x 60” H x 96” W chip box with front cutout
- Curbside interior ladder box with pruner shelf and rear door
- LED light package with trailer plug
- 6-point LED amber strobe lights
- Undercoated
- Vents in upper side panels
- White in color
- 20,000 lb. capacity tow package with pintle hook
- Two (2) wheel chock holders and chocks
- Hoist & hydraulics
- Fire extinguisher, DOT triangle kit
- Road tested & DOT inspected
- Toolbox:
- 3 vertical compartments street side
- 2 vertical compartments curbside with horizontal pass thru compartment to street side
- Shelving and rope hooks
- Locking doors with door seal and an additional locking system for added security
- White in color
