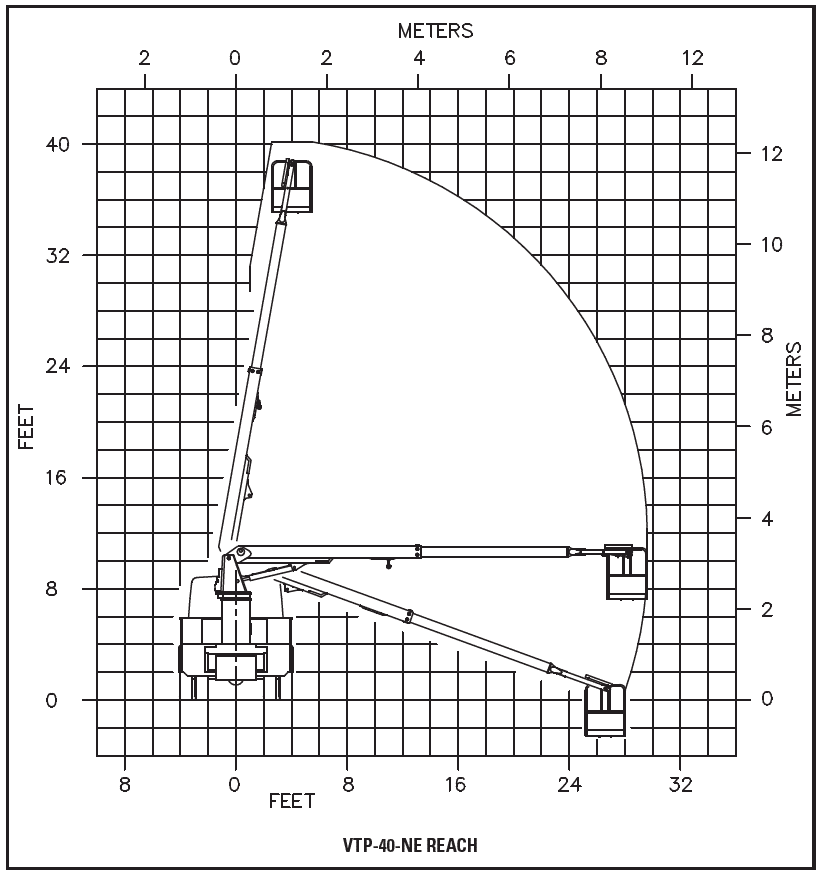

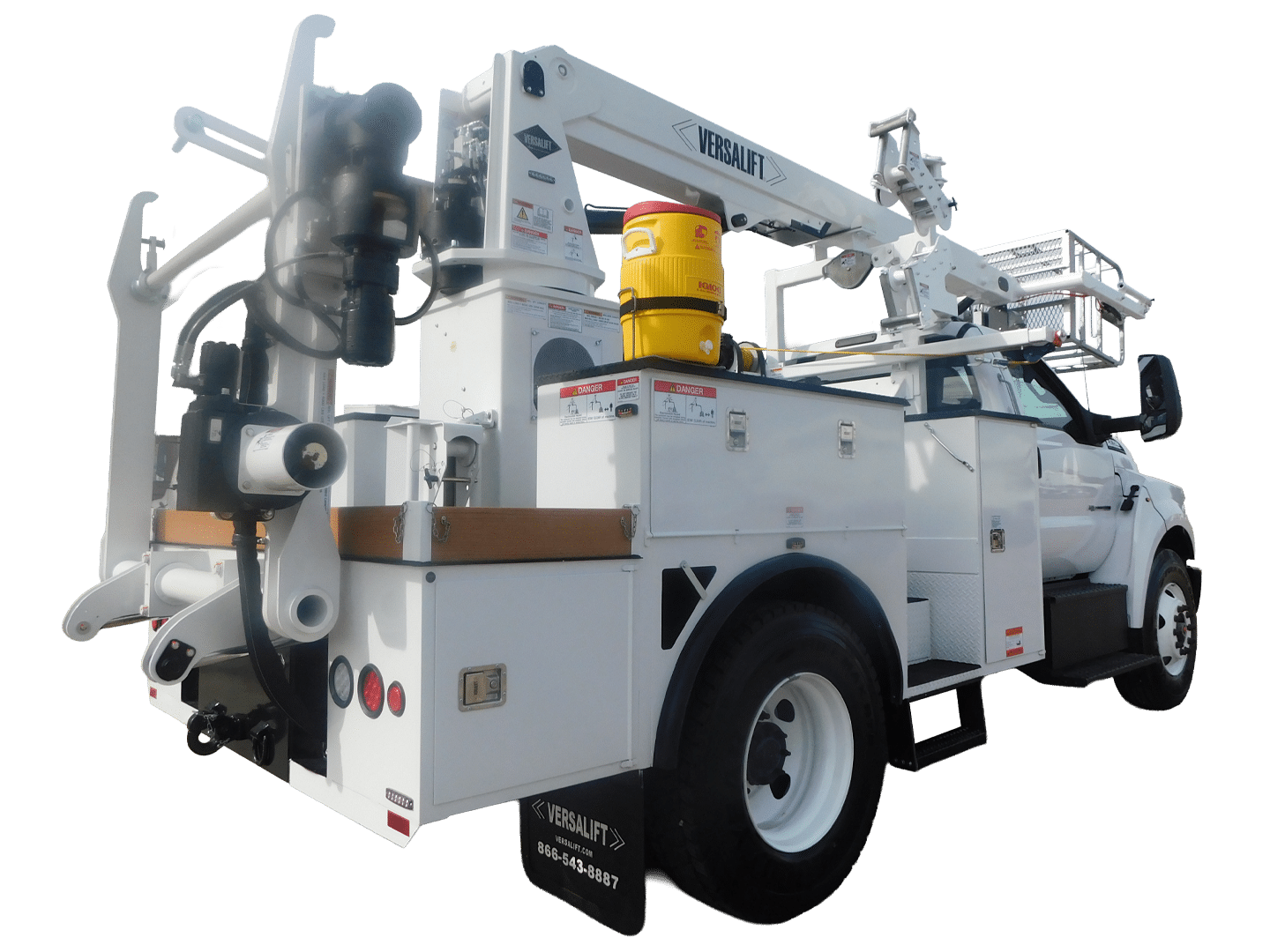

VERSALIFT VTP-40-NE a non-insulated, 35 ft. (10.7 m) telescopic articulating aerial platform lift, 40 ft. (12.2 m) working height including the following standard and optional features:
• Standard platform capacity of 350 lbs. (158 kg), plus 150 lbs. (68 kg) cable down force.
• Boom tip side load capacity is 600 lbs. (270 kg) when fairlead retracted and 450 lbs. (200 kg) when extended.
• Full pressure UNITROL single stick control with integral safety trigger and emergency stop control
• Engine start/stop system with controls at platform and lower controls.
• 370° non-continuous rotation with a hydraulic stop.
• Closed center hydraulic system operates at 12 GPM (38 LPM) at 2250 psi (175 kg/cm)
• Integral hydraulic oil reservoir with 30 gallon (115 liter) capacity.
• Outer boom consists of a 10 in. x 10 in. (254 mm x 254 mm) steel section
• 8 in. x 8 in. (203 mm x 203 mm) rectangular steel inner boom is housed within the outer boom.
• 32 in. x 32 in. x 42 in. (0.81 m x 0.81 m x 1.09 m) steel platform with door and safety chain.
• Intercom with cab and platform speakers and volume control in cab
• 2000 lbs. (900 kg) rated lower boom lifting eye
• 12 volt DC backup pump providing power to all boom functions.
• 6000 lbs. (2700 kg) reel loader for reels up to 64 in. (1.7 m) wide and 84 in. (2.1 m) diameter
• Hydraulic powered cable retriever drive includes clutch to allow the reel to free wheel and hydraulic caliper disc brake to tension cable. Provides 36,000 in-lbs. (4070 N-m) drive and torque and a maximum drive speed off approx. 12 rpm. The reel drive control is included with the lower control pendant and the proportional reel brake is located in the cab.
• 2000 lbs. (900 kg) capacity strand carrier designed to carry strand reels up to 28 in. (0.71 m) wide and 32 in. (0.81 m) diameter, includes a hydraulic caliper disc brake to tension the strand providing 9600 in-lbs. torque. The proportional reel brake control is located in the cab.
• Swivel bull wheel system, mounted on boom rest
• Deck mounted four-way roller fairlead (bolted behind pedestal)
• Complete sub-frame and mounting hardware for chassis/cab installation.
• Complete boom rest assembly with polyethylene cradle for outer boom.
• GFCI receptacle for 120 volt power at platform
• Remote wired lower control box with the following functions: boom up/down, extend/retract, rotate, leveling, winch, reel lift, reel drive and capstan.
• Tow line winch (worm gear type) mounted at lower boom rest structure, includes control at platform and pedestal with 70 ft. of rope installed. Bare drum capacity of 1500 lb.
• Worm gear capstan assembly to the curbside reel lift arm
• PTO and pump for mobile operations with over speed limit (2250 psi, 12 GPM at idle, closed center)
• Aluminum tool tray 6.25 in. x 12 in x 23 in (160 x 305 x 580 mm) attaches to top rail of platform.
• Aluminum small parts tray 5 in. x 5 in. x 19 in. (130 x 130 x 480 mm) attaches to platform or tool tray.
• Full body harness and lanyard.
• Painted standard white urethane.
• Two operator’s manuals and two service manuals.
• ANSI A92.2 data plate.
Cab and chassis to the following specifications:
• 2022 Ford F-750 4×2 cab and chassis with 84” CA
• 25,999 lb. GVWR.
• 6.7L Power Stroke V8 (270 HP) Turbo diesel engine
• Ford TorqShift HD 6-Speed automatic transmission
• Single channel – straight “C” 16.98 SM, 120,000 PSI frame
• 6.50 limited slip axle.
• Hydraulic brake system – Bosch HydroMax with traction control
• 22.5×8.25 powder coated steel wheels with 11R22.5G tires.
• Power equipment group.
• 30/70 Air ride driver (Integral air pump) and fixed 2-passenger bench – vinyl
• AM/FM stereo radio with USB input and Bluetooth
• Painted Oxford White.
• Full chassis specifications available upon request
Body 135 in. long x 47 in. high x 94 in. wide to include the following:
• 47 in. compartment height, 20 in. compartment depth, 54 in. floor width.
• Stainless steel automotive rotary type door latches, with chain stops on all doors
• Rubber rolled crown type fenders
• Wheel chock storage with pendulum retainer
• 6 in. removable composite rails x full perimeter of tailshelf (incl. rear) for material containment
• Curbside compartments as follows:-
• 1st Vertical (32 in.): Nine (9) fixed material hooks 3-3-3, one fixed shelf
• Access Steps: 24 in. wide, hinged gripstrut access steps with battery storage with one (1) gas assist door opener, two (2) chrome handles and one (1) cable step
• Horizontal (57 in.): Open
• Curbside Tailshelf Box: 28 in. x 24 in. x 20 in. box with vertical hinged access door
• Streetside compartments as follows:
• 1st Vertical (25 in.): Six (6) fixed material hooks 3-3-0
• 2nd Vertical (25 in.): Six (6) fixed material hooks 0-3-3, NO wall between 1st and 2nd verticals
• Horizontal (57 in.): Open
• Streetside Tailshelf Box: 28 in. x 24 in. x 20 in. box with vertical hinged access door
Installation to include the following:
• Install VERSALIFT VTP-40-NE, mounting hardware, PTO and pump.
• Install rear torsion bar.
• Install service body and accessories
• Paint body and accessories white and non-skid body floor area.
• Install amber strobe lights one each side of turret.
• Install front strobe lights in grille and rear strobe lights on rear body panel
• Install Dimensions Pure Sine inverter with battery to be tied into 120V outlets at platform.
• Install brake controller, T-60 medium duty pintle hook, D rings, 4-way and 6-way trailer connector
• Install rear mud flaps and pipe cone holder with base (located to rear of tower on body floor).
• Install manual holder in cab and five (5) gallon water cask with storage bracket on top of body compartment.
• Install fire extinguisher with storage bracket (mount inside streetside front compartment)
• Mount convex mirror (top of streetside mirror) to view basket during mobile operation.
• Furnish medical kit, pair of rubber wheel chocks and DOT triangle type road reflector kit.
• Test ride completed unit for 1 hour.
• Test and certify per ANSI A92.2
