Product Overview

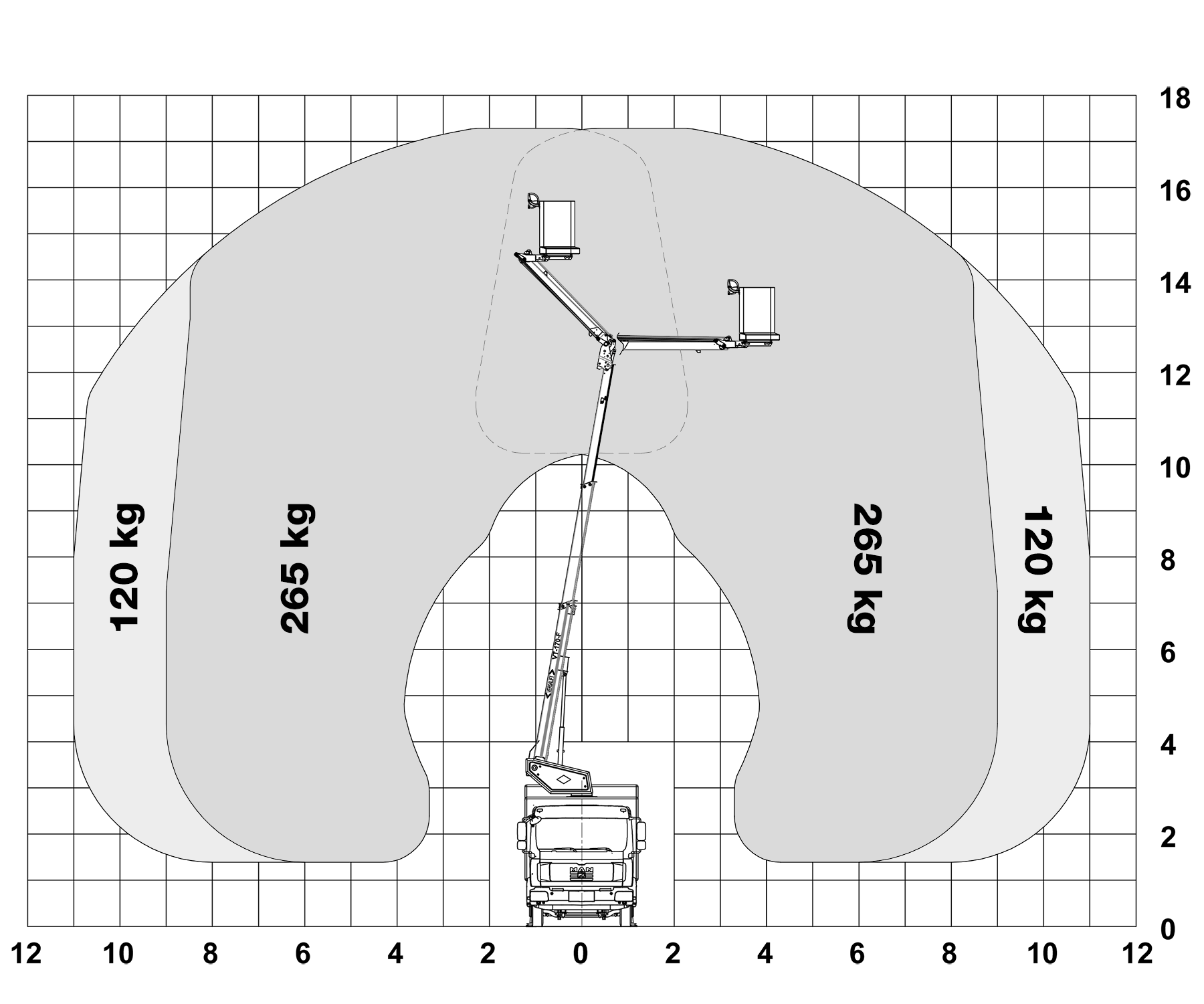

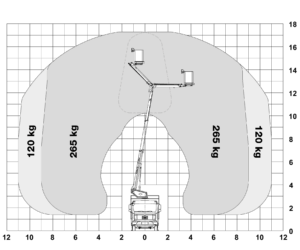

Working Height
17.2 m
Platform Height
15.2 m
Max Outreach
3750 m
Max Capacity
265 kg
Lift Rotation
420°
Insulated or Non-insulated
Yes
Material Handling Option
No
Specifications
Base Vehicle
MAN TGL / Mercedes Atego
Unique ID
C658FA
Model
VDT-170-F
Base Lift
VDT-170-F
Platform Vehicle Type
Chassis mounted telescopic platform
Wheelbase
3050 cm
Total Length
6550 cm
Bucket
2 man Euro Fiberglass
Flyboom Articulation
200°
Slope Degrees
5/10°
Control system
FPC (Electrohydraulic)
Power source
PTO
Outriggers
H-frame
GVWR
7490 kg
Leftover payload
1120
