Product Overview
Working Height
13.5 m
Platform Height
11.5 m

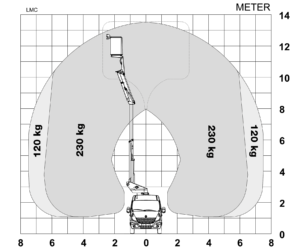

Max Outreach
3310 m
Max Capacity
230 kg
Lift Rotation
420°
Insulated or Non-insulated
Yes
Material Handling Option
No
Specifications
Base Vehicle
Renault Master (cutaway)
Unique ID
V945L
Model
VTL-135-FZ
Base Lift
VTL-35-FZ
Platform Vehicle Type
Van mounted telescopic platform
Wheelbase
3682 cm
Total Length
5912 cm
Bucket
2 man Eco Fiberglass
Flyboom Articulation
140° Z
Slope Degrees
3/5°
Control system
LMC (Electrohydraulic)
Power source
Belt drive
Outriggers
A-frame
GVWR
3500 kg
Leftover payload
410
