Product Overview
Working Height
16.3 m
Platform Height
14.3 m

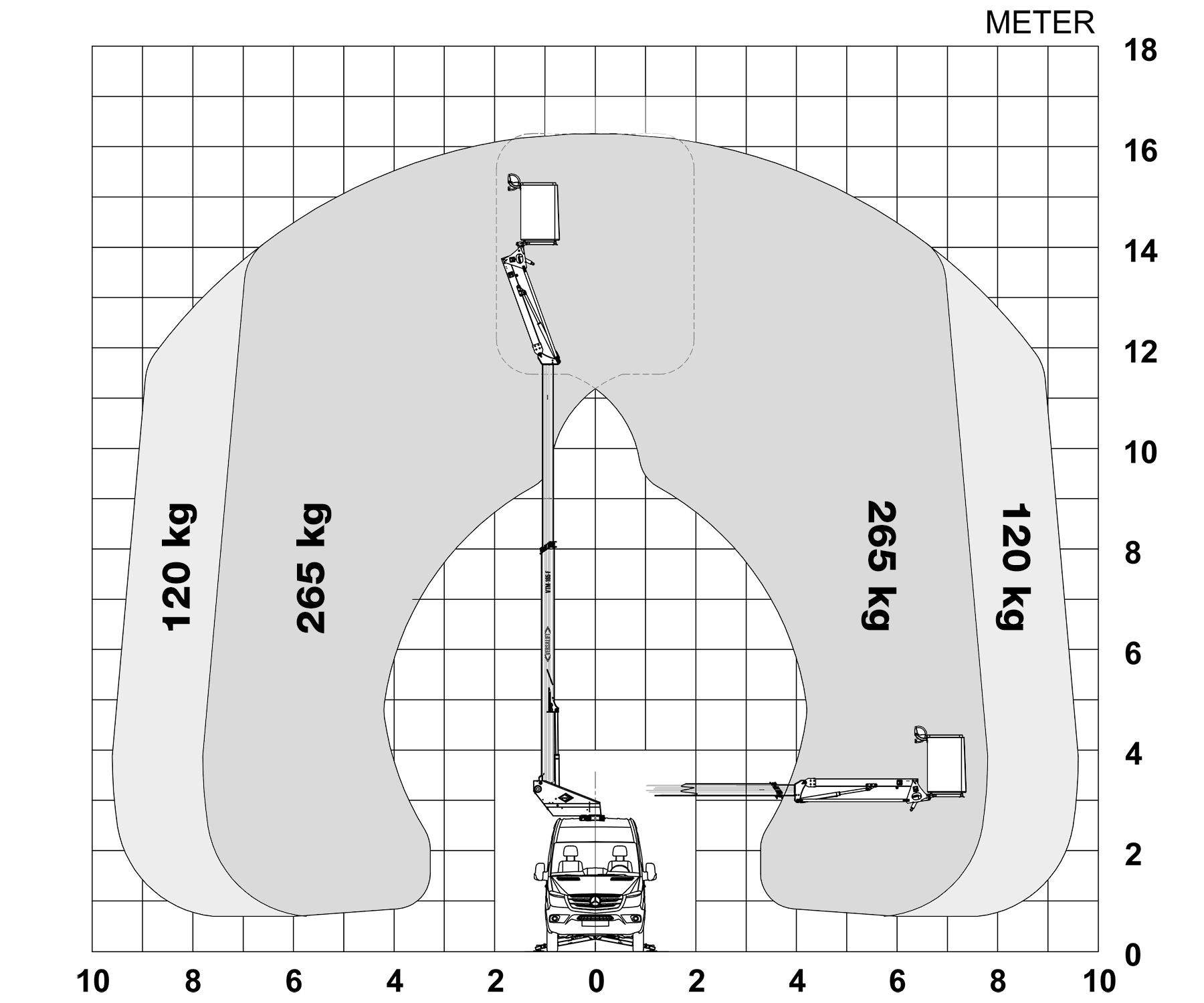

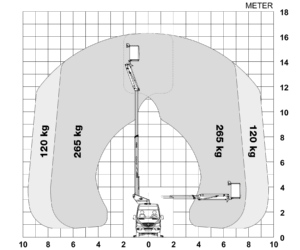

Max Outreach
3450 m
Max Capacity
265 kg
Lift Rotation
420°
Insulated or Non-insulated
Yes
Material Handling Option
No
Specifications
Base Vehicle
Mercedes-Benz Sprinter
Unique ID
V830F
Model
VTM-165-F
Base Lift
VTM-47-F

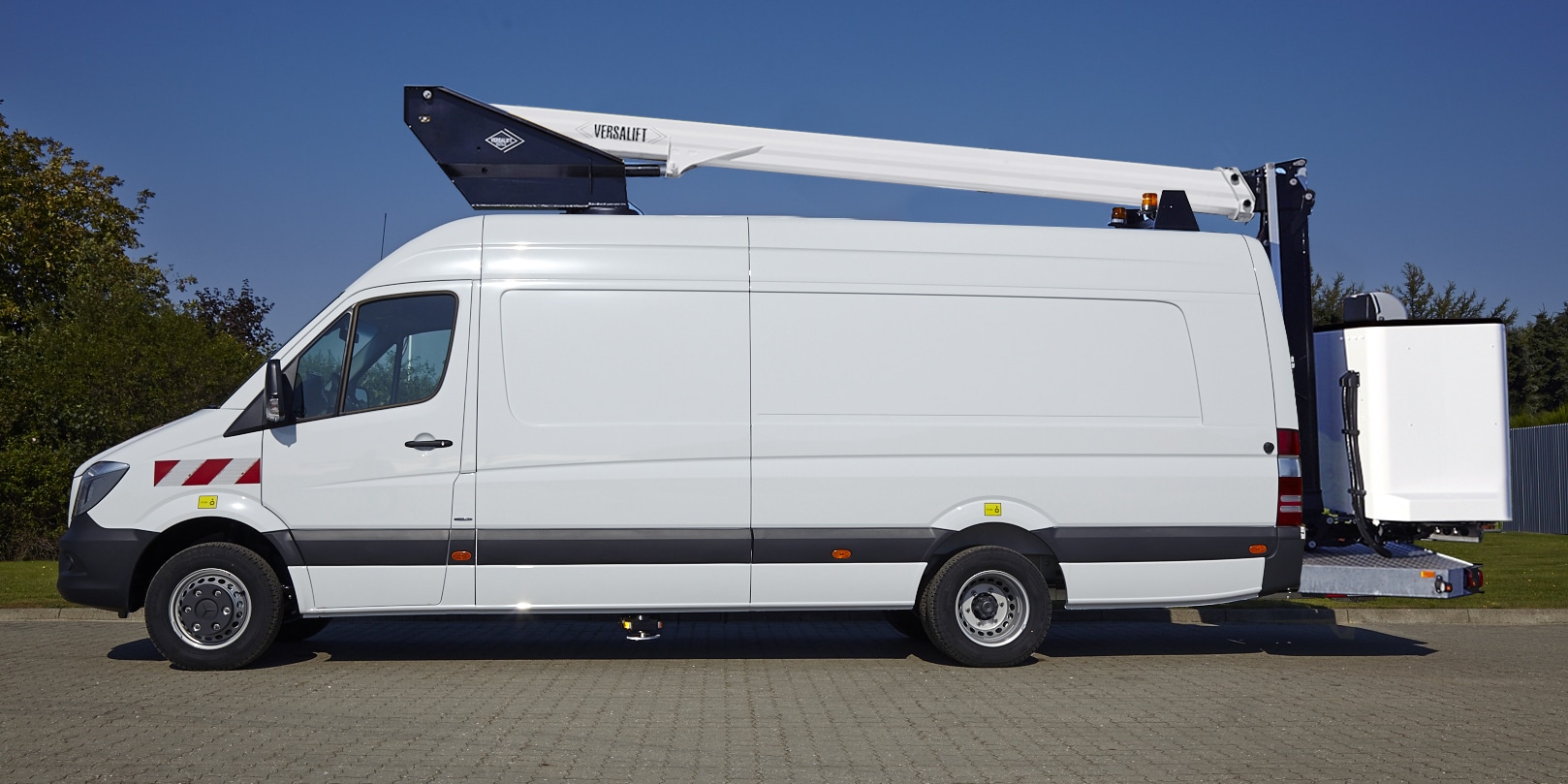

Platform Vehicle Type
Van mounted telescopic platform
Wheelbase
4325 cm
Total Length
8280 cm
Bucket
2 man Eco Fiberglass
Flyboom Articulation
180°
Slope Degrees
5/10°
Control system
FPC (Electrohydraulic)
Power source
PTO
Outriggers
Radial
GVWR
5000 kg
Leftover payload
895
