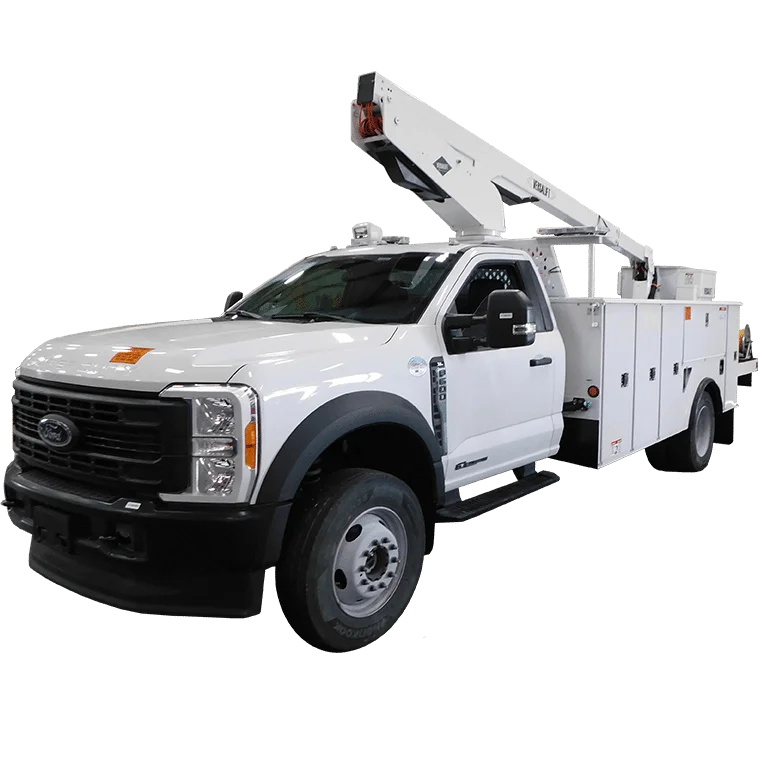

Bucket Truck
TEL-29-EI

Telescopic

29 ft. Insulated End Mount Telescopic

INDUSTRIES SERVED
Electric Power Distribution, Electric Utilities
TYPE
Telescopic
HEIGHT RANGE
29ft - 45ft
MODEL SERIES
TEL

Product Overview

Working Height
35.58 ft (10.67 m)
Height to Bottom of Platform
30.58 ft (9.14 m)
Horizontal Reach
23.42 ft (7.01 m)
Stowed Travel Height
9.75 ft (2.74 m)
Platform Capacity
350 lbs (158.76 kg)
Insulated or Non-insulated
Insulated
Material Handling
No

Specifications

Hydraulic System

Hydraulic Controls
Electric/Hydraulic
Operating Pressure
2250 psi (158.19 kg/cm²)
Flow Rate
2 gpm (11.36 lpm)
Filtration
10 micron return | 100 mesh suction
System Type
Open Center
Power Source
PTO Pump, Belt Drive, DC Drive, or Generator

Boom

Inner/Outer Boom Articulation
-8° to +80°
Inner Boom Extension
116 in (2.95 m)
Boom Rotation
360º Non-Continuous

Vehicle Requirements

GVWR
14500 lbs (6577.06 kg)
Cab to Axle (minimum)
60 in (1.52 m)
