ETL-21-90 V102R
INDUSTRIES SERVED
TYPE
HEIGHT RANGE
MODEL SERIES
Product Overview

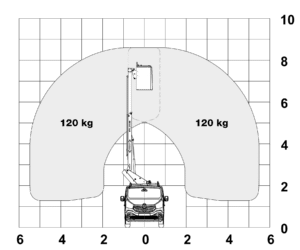

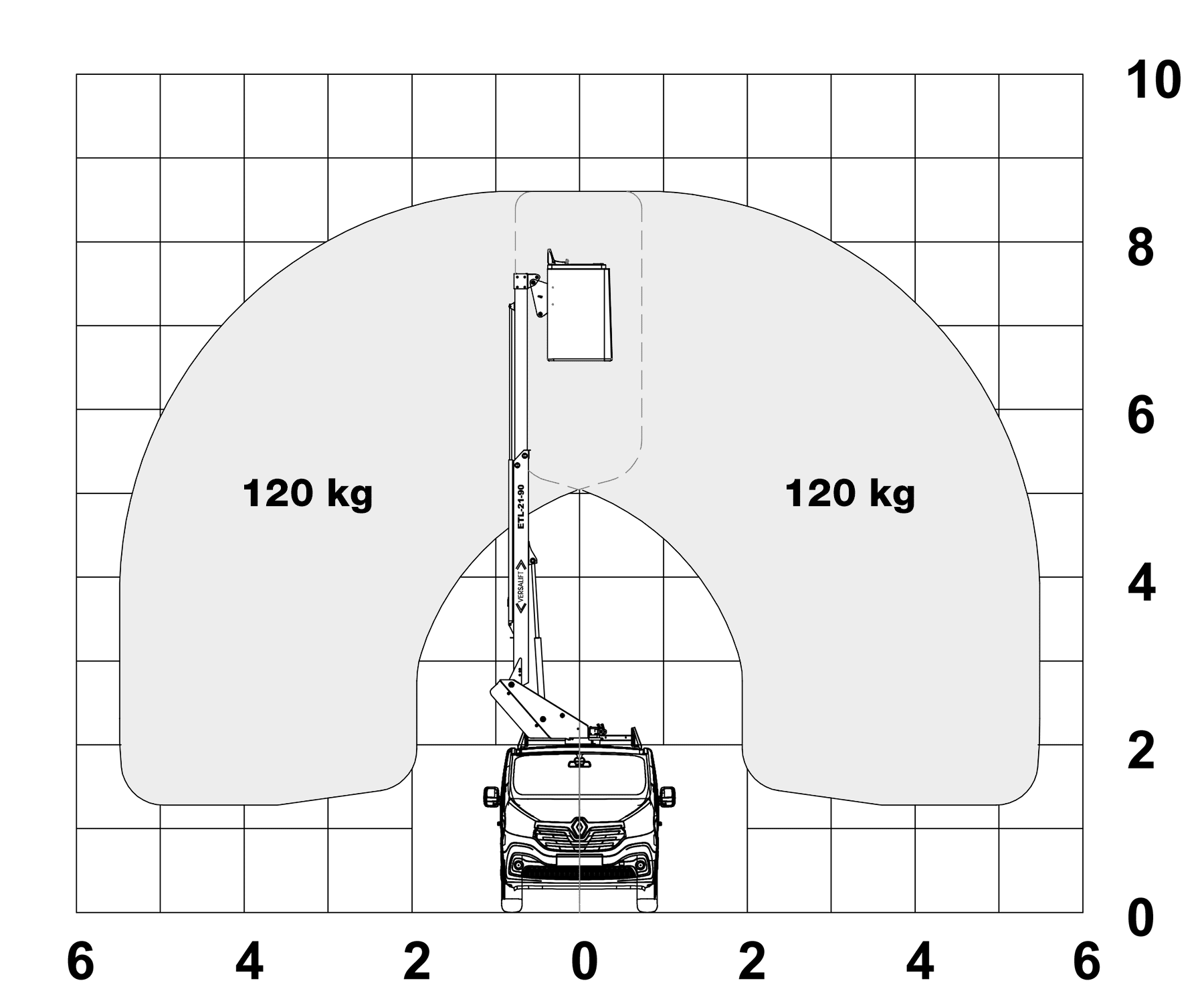

Working Height
8.6 m
Platform Height
6.6 m
Max Outreach
2800 m
Max Capacity
120 kg
Lift Rotation
360°
Insulated or Non-insulated
Yes
Material Handling Option
No
Specifications
Base Vehicle
Renault Trafic
Unique ID
V102R
Model
ETL-21-90
Base Lift
ETL-21
Platform Vehicle Type

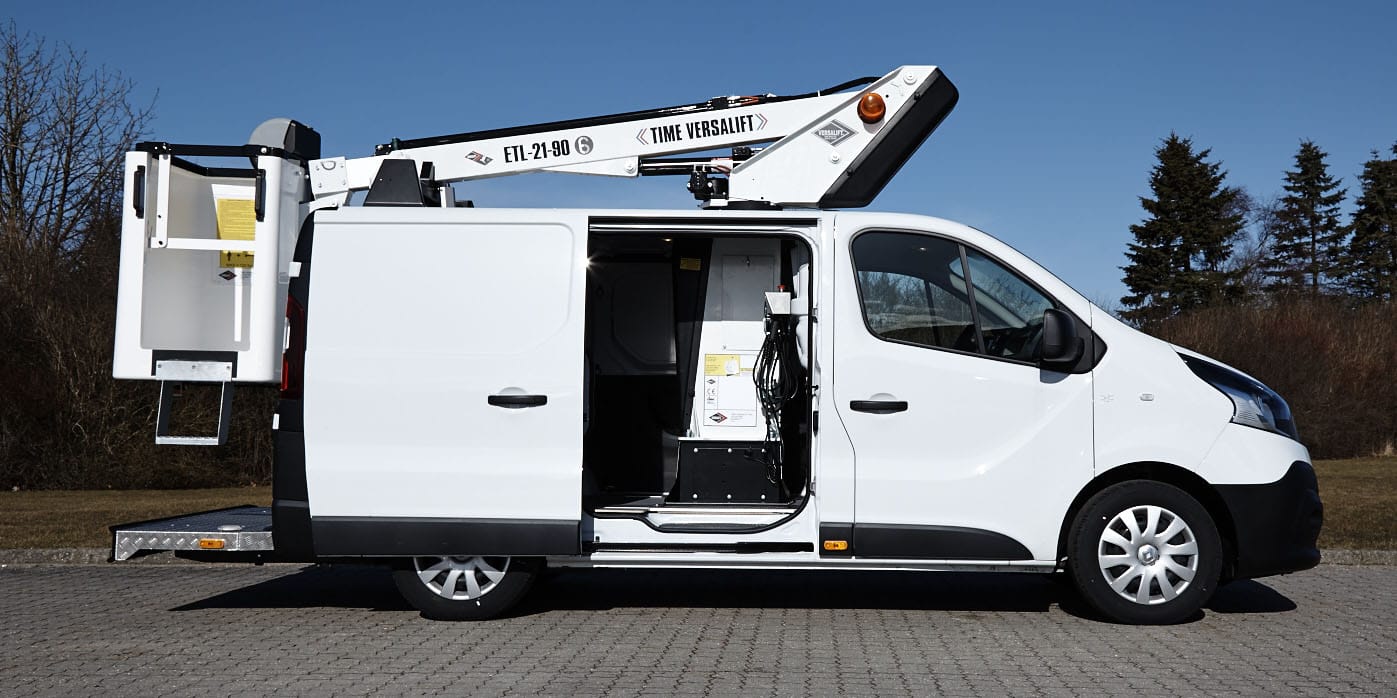

Van mounted telescopic platform
Wheelbase
3098 cm
Total Length
5813 cm
Bucket
1 man Eco Fiberglass
Flyboom Articulation
-
Slope Degrees
3/5°
Control system
RLC (Electrohydraulic)
Power source
Belt drive
Outriggers
-
GVWR
2920 kg
Leftover payload
210
